TaoTronics Bluetooth Transmitter TT-BA01

Download Manual

TaoTronics Bluetooth Transmitter TT-BA01.pdf

Features

TaoTronics, The Leading Brand of Bluetooth Transmitter Field. 5 years of business Experiences with more than 1.5 Million satisfied customers, First Choice of High Quality with proper price. Sunvalleytek is the only authorized seller of TaoTronics on Amazon.

  • Turn your regular stereo audio devices into a Bluetooth-enabled, wireless streaming machine thru 3.5mm audio-out jack. User-friendly design of LED light and button.
  • Work with any type and brand of device such as TV, PC, CD player, iPod, MP3/MP4 etc. up to 30 feet working range. Easy pairing with Bluetooth stereo headset, headphones, speakers and other Bluetooth stereo audio enabled system.
  • Small, lightweight and durable! Take it with you and enjoy Bluetooth music anytime/anywhere for up to 7 hours! Can work while charging. Micro charging port.
  • Wanna Save More Money? Enter code 7MHSR7IR at checkout to save $3.00 on High-Fidelity Music Transmitter for every 1 TV Transmitter TT-BA01U you purchase offered by Sunvalleytek.

Text of Manual

E-Mail: support@taotronics.com

Tel: 1-888-456-8468 # 4(Monday-Friday:

(9:00- 17:00 PST)

Address: 2880 Zanker Rd, Suite 203,

San Jose, CA 95134

E-Mail: support.uk@taotronics.com

(United Kingdom) support.de@taotronics.com (Germany) su pport.fr@taotronics.com (France) support.es@taotronics.com (Spain) support.it@taotronics.com (Italy)

EU Importer: ZBT International Trading

GmbHLederstr 21a, 22525

Hamburg, Deutschland



Thank you for purchasing TaoTronics TT-BA01 Bluetooth Stereo Transmitter. Please read the user manual carefully to understand its features and operation. If in doubt, please email support@taotronics.com with details.

Specifications



Bluetooth Version Bluetooth V2.1 with EDR, Class II
Bluetooth Profile A2DP, AVRCP
Range 33 feet (in open space)
Charging Power DC 5V
Charging Type Universal Micro USB Port
Battery Rechargeable Li-Polymer battery
Working / Standby Time 6-7 hours working / 140 hours standby
Charging Time About 2 hours
Dimension (L*W*H) 2.4″*0.87″*0.39″ (61″22″10 mm)
Weight 0.03 Ibs (13g)

Overview

The TT-BA01 is a high definition Bluetooth stereo transmitter, which can make any stereo device a wireless device! It does this by decoding high definition stereo signals into Bluetooth digital signals that transmit to your Bluetooth receiving device. So, you can enjoy all the music from your non-Bluetooth mobile phone, iPod, Kindle Fire and even TV, wirelessly!

This product has a built-in Lithium battery that can last for up to 7 hours on a full charge.

System Requirements

An audio or music playing device with a 3.5mm audio-out jack.

Pair with any Bluetooth stereo receiving devices that support the Bluetooth A2DP profile, such as Bluetooth headsets, speakers, etc,





2.Turning the transmitter On/Off



Function Operation LED indicator
Turn ON Press and hold the power button for 3-5 seconds until the LED flashes in blue The blue LED will be on
Turn OFF Press and hold the power button for about 3 seconds until the LED flashes in red The LED will flash in red for three times and then off
3.LED indicator



LED Color The status of transmitter
Red and blue LEDs flash alternately Paring mode
Blue LED flashes twice every 5 seconds Standby mode
Red LED flashed once every 10 seconds Bluetooth connection established

Identification of Parts

O LED indicator

Q Power button

® 3.5mm audio-in plug

O Micro USB charging port

How to Use

1 .Charging

The transmitter can be fully charged in around

2 hours. We recommend charging the unit for

least 4 hours before using for the first time.

To charge the transmitter:

1) Insert the micro-USB end of the charging

cable into the charging port of the transmitter

2) Plug the USB end of the charging cable to

an USB charging adapter or any active USB port

3) The power LED will turn red when charging.

It will automatically turn OFF when the transmitter is fully charged.

Note: You can use the TT-BA01 while it is charging. The internal circuit is protected from over-charging.





4.Bluetooth Pairing

*   Note: Before pairing, please make sure

your Bluetooth receiving devices support Bluetooth A2DP (Advanced Audio Distribution Profile).

In order for your TT-BA01 to pair with other Bluetooth device, you must bring the TT-BA01 into pairing mode. This is indicated by the LED indicator flashing in red and blue alternatively.

1) Start with TT-BA01 turned OFF. Please

make sure no other Bluetooth device around is in pairing mode.

2) Bring the TT-BA01 and your Bluetooth

receiving device next to each other or within 3 feet distance.

3) Press and hold the power button for about 6-7 seconds or until the LED indicator is blinking in RED and BLUE alternately. You will see the blue light blinking first. Just keep holding the button and the light will soon change to blue and red flashing.

4) The TT-BA01 is now in pairing mode. Please

follow the instruction of your Bluetooth receiving device to bring it into pairing mode and it should automatically pair with the TT-BA01.

5) Once successfully paired, the LED indicator will turn RED and then flash once every 10 seconds.

Note:

If a PIN code is required for pairing, please

try the following code: “0000 .. 1234 1111”

or “8888”.

When your device is switched on, it will automatically connect with the last paired device. To pair it with other devices, first switch off the old paired receiving device and then pair the transmitter to the new device using the same steps listed above.

The TT-BA01 will stay in pairing mode for 2 minutes at most if no pairing device is found. Afterwards, it will go into standby mode until power off.

The TT-BA01 will switch to standby mode if pairing devices is switched off or Bluetooth disconnected.

The TT-BA01 is able to be used while charging.

When the unit is charging, the RED LED will be lit constantly until charging is over. To avoid confusion when charging and using at the same time, we recommend pair the device first, and then start charging.





5.Reset

Sometimes, the TT-BA01 will refuse to pair with other devices even if it is in pairing mode with red and blue light flashing. You will need to reset the transmitter to make it fresh and wanting to pair again.

Do not drop or knock your transmitter on hard surfaces as it damage the interior circuit.

  • Do not use chemicals or detergents to clean

the product.

° Do not scrape the surface with sharp objects.



To reset the transmitter:



A:



Q,



  • Turn ON the transmitter
  • Double press the power button • Turn OFF the transmitter

You may need to try this a few times if it does not work on your first attempt.

Care and Maintenance

Please read the following recomm-endations to keep your product running smoothly for a long time to come.

Keep the transmitter away from heat and

humidity.

  • Do not put the product under direct sunlight

or hot areas. High temperatures will shorten lifespan of the transmitter, battery and/or the internal circuit board.

  • Do not try to take the product apart. It may

cause serious damage.

TroubJe shooting

Q: My transmitter will not switch on.

Please recharge it and make sure the TT-BA01 has enough battery power. Plug the unit to a charger and see if the LED indicator will become red.

I am having trouble pairing and connecting to my Bluetooth pairing device.

A: Please check the following:

  • Please make sure your Bluetooth device

support A2DP profile.

  • Make sure turn OFF other Bluetooth devices

around

  • Make sure the TT-BA01 and your device are

next to each other or within 3 feet

  • You must get the TT-BA01 into pairing mode

with LED indicator flashing in red and blue alternatively





A:



Q;



A:



  • You may need to clear the memory. Please

read ‘how to clear memory’ for instructions.

Q: After connecting and paring with my Bluetooth device, I cannot hear any music from my sound system.

A: Please check the following:

  • Make sure the transmitter is connected well

with the player.

  • Make sure the player is playing music and

the volume is turned up.

Q: Why can I not pair with my smartphone or iPad?

A: The “I-I’-BA01 is a Bluetooth transmitter, NOT a receiver. You must connect the transmitter to a non-Bluetooth audio generating device such as a Kindle Fire, iPod, TV, computer, etc. Then pair it with your Bluetooth headset/speaker.

Note:Due to Bluetooth compression/decompression, there may be a delay in audio/video uses. This is standard among all transmitters.

Q: My device is flashing RED.

A: This means the battery is low and needs to

be charged soon.

Q: Can I use my transmitter while it is charging?

Yes, we have updated the TT-BA01 transmitter since Dec 1st 2013, so now you can use it while charging.

I haven’t used the TT-BA01 for a while, now the battery is dead. What can I do?

If the unit has not been used for more than 21 days, please charge the unit for at least 4 hours as the battery will need a full charge and be aware the LED indicator light may take several hours to show recharging is

complete.

TechnicaP Assistance

For technical assistance, please email to SUPPORT@TAOTRONICS.COM with your purchase order number and a detailed description of your issue. We normally respond to enquiries within 24 hours.

For more information, please visit www. TaoTronics.com.

Warranty

This product is covered with TaoTronics parts and labor warranty for 12 months from date of the original purchase from authorized



-9-                                                                                                                     -10-



-12-



retailer and distributor. If the device fails due to a manufacturing defect, please contact TaoTronics Support (support@taotronics.com) immediately to launch a warranty claim. We will instruct you on how to return the defective unit back to us for repair and replacement.

The following are excluded from TaoTronics warranty cover:

  • Device purchased as 2nd hand, used or

from unauthorized sellers

  • Damage resulted from misuse and abusive

action

Damage resulted from chemical, fire

radioactive substance, poison, liquid

  • Damage resulted from natural disaster
  • Damage caused to any 3rd party / person

object and beyond

No return will be accepted without seller authorization.

Statement

We can only provide after sale services for products that are sold by TaoTronics or TaoTronics authorized retailer and distributor. If you have purchased your unit from a different place, please contact the seller for return and warranty issues.

-11 –

Vielen Dank, dass Sie den TaoTronics TT-BA01 Bluetooth Stereo Transmitter gekauff haben. Bitte lesen Sie die Bedienungsanleitung grQndlich durch, um sich mit allen Eigenschaften und Funktionen des TT-BA01 vertraut zu machen. Falls Sie Fragen haben sollten, schicken Sie uns bitte eine EMail mit detaillierter Beschreibung Ihres Problems an: support.de@ taotronics.com

0bersicht

Der -I-I–BA01 Bluetooth Stereo Transmitter, macht aus jedem Stereoger~t ein kabelloses Stereoger&fl Dazu werden Stereosignale entschlesselt und in digitale Bluetoothsignale umgewandelt, die an ein Bluetoothempfangsger~t gesendet werden. Dadurch erleben Sie Musikgenuss auf dem Ger~t Ihrer Wahl, ob Ihr Mobiltelefon ohne Bluetooth, iPod, Kindle Fire und sogar TV. Und das kabellos!

Der eingebaute Lithium-Akku dieses Produkts h~lt bei vollerAufiadung bis zu 7 Stunden lang.

Systemanforderungen

Ein Audio-oder Musikabspielger&t mit einem 3,5 mm Audioausausgang.



Aufladungsdauer ungef~hr 2 Stunden
Dimension (LxBxH) 61 mm x22 mm x 10 mm
Gewicht 13,6 g

Eine Verbindung zu einem Bluetooth Stereoempfangsger~it, das das Bluetooth A2DP unterstQtzt, wie z.B. Bluetooth Kopfh6rer, Bluetooth Boxen, usw.



ILM~drekaUbSB”1



/~3.5mm weiblich~ an 2 RCA m~nnlich Kabel



(‘~oTronicsTT-BA0~ IereO TranimittI



Spezifikationen



B luetoothversion Bluetooth V2.1mit EDR, Klasse II
Bluetoothprofile A2DP, AVRCP
Reichweite 10 m (unter freiem Himmel)
Eingangsstrom (Aufladung) 5 V Gleichstrom
Aufladung i.iber universeller Micro-USB Anschluss
Akkumulator wiederaufladbarer Lithium Polymer Akkumulator
Betriebsdauer / Standby Zeit 6 bis 7 Stunden / 140 Stunden

VorsteHung tier gedienelemente

®–q

LED Anzeige

(~) Multifunktionsknopf                 ®~

(~) 3,5 mm Audioeingangsstecker~~¢¢

O Micro-USB-Ladeanschluss

Wie man den TT-BA01 verwendet

  1. Aufladen

Der Transmitter kann in ungef~hr 2 Stunden voll aufgeladen werden. Wir empfehlen, den TT-BA01 vor der ersten Verwendung mindestens 4 Stunden lang aufzuladen.

Folgendermagen laden Sie den Transmitter auf:

1) Stecken Sie den Micro-USB-Stecker des

Ladekabels in den Ladeanschluss des

Transmitters.

2) Stecken Sie den USB-Stecker des Ladekabels in einen USB-Ladeadapter oder einen aktiven USB-Anschluss.



– 13 –                                                                                                                     – 14 –



  1. LED Anzeige



=



3) Die LED leuchtet w~hrend des Aufladens rot. Sie schaltet sich automatisch aus, wenn der Transmitter voll aufgeladen ist.

Hinweis: Sie k6nnen die TT-BA01 w~hrend des Aufladens verwenden. Die internen Schaltkreise sind vor 0berladung gesch(Jtzt.

  1. Ein- und Ausschalten
Funktion Bedienung LED Anzeige
Einschalten Halten Sie den Knopf 3 bis 5 Sekunden lang gedr0ckt, bis die LED blau blinkt. LED leuchtet blau
Ausschalten Halten Sie den Knopf ca. 3 Sekunden lang gedr(Jckt, bis die LED rot blinkt. LED blinkt dreimal rot und schaltet sich dann aus
LED Farbe Transmitterstatus
LED blinkt abwechselnd rot und blau Verbindungsmodus
LED blinkt alle 5 Sekunden zweimal blau Standby Modus
LED blinkt alle 10 Sekunden einmal rot Bluetooth Verbindung hergestellt

Bluetooth Verbindung

Hinweis: Stellen Sie vor dem Herstellen der Verbindung bitte sicher, dass Ihr Bluetoothempfangsger~it das A2DP (Advanced Audio Distribution Profile) unterstLitzt.

Um eine Verbindung zwischen Ihrem TT-BA01 und einem anderen Bluetoothger~t herzustellen, mQssen Sie den TT-BA01 in den Verbindungsmodus schalten. Den Verbindungsmodus (wird angezeigt durch abwechselnd rotes und blaues Blinken) k6nnen sie folgendermal&en aktivieren:

1) Stellen Sie sicher, dass tier TT-BA01

AUSgeschaltet ist und sich kein anderes Bluetoothger~t in der N&he im Verbindungsmodus befindet.

2) Legen Sie den TT-BA01 und Ihr

Bluetoothempfangsger~t nebeneinander



-15-                                                                                                                     -16-



3)



4)



5)



oder bringen Sie die Ger&te in einen Abstand von nicht mehr als 90 cm zueinander.

Halten Sie den Knopf 6 bis 7 Sekunden lang gedreckt oder bis die LED abwechselnd rot und blau blinkt. Das blaue Licht wird zuerst Blinken. Halten Sie den Knopf einfach weiter gedr0ckt, bis die LED abwechselnd blau und rot leuchtet.

Der TT-BA01 befindet sich nun im Verbindungsmodus.Schalten Sie jetzt Ihren Bluetoothempf~nger ebenfalls in den Verbindungsmodus (folgen Sie den Anweisungen des Herstellers). Die Verbindung zwischen den beiden Ger~ten sollte automatisch entstehen.

Sobald eine Verbindung erfolgreich hergestellt wurde, blinkt die LED alle 10 Sekunden einmal rot auf.

Hinweis:

Falls zum Erstellen der Verbindung eine

PIN ben6tigt wird, versuchen Sie eine der folgenden.,,0000 ,1234 ,1111 oder ,,8888.

  • Wenn Ihr Transmitter eingeschaltet wird,

verbindet es sich automatisch mit dem Get,t, mit dem es alS ietztes verbUnden war. Um eine Verbindung mit einem anderen

Ger~t herzustellen, schalten Sie bitte das Ger~t zu dembisher eine Verbindung bestanden hat AUS und f0hren Sie die Herstellung einer Verbindung gem~r& den oben genannten Schritten durch.

Der TT-BA01 bleibt h6chstens 2 Minuten im Verbindungsmodus. Wenn bis dahin kein Ger~t fer eine Verbindung gefunden wird, kehrter zur0ck in den Standby Modus.

Der TT-BA01 versetzt sich in den Standby-Modus, wenn das verbundene Ger~t abgeschaltet wird oder das Bluetoothsignal unterbrochen wird.

Der TT-BA01 kann verwendet werden, w~ihrend sie aufgeladen wird.

Wenn der Transmitter aufgeladen wird, leuchtet die LED rot bis die Aufladung vollst&ndig abgeschlossen ist. Um Verwirrungen beim gleichzeitigen Aufladen und Verwenden zu vermeiden, empfehlen wir die Verbindung zuerst herzustellen und dann die Aufladung zu beginnen.

  1. Reset (ZurLicksetzen)

Manchmal schafft es der TT-BA01 nicht eine

Verbindung mit anderen Ger~ten herzustellen,

obwohl er im Verbindungsmodus ist. In diesem



-17-                                                                                                                     -18-



F”



A:



Fall m0ssen Sie einen Reset ausfOhren, um den Transmitter wieder in seinen urspr0nglichen Zustand zurQck zu versetzen. Dann k6nnen Sie wieder Verbindungen herstellen.

Folgenderma6en k6nnen Sie den Transmitter zun3cksetzen:

  • Schalten Sie den Transmitter EIN

o Dr0cken Sie Knopf zweimal schnell

hintereinander

  • Schalter Sie den TransmitterAUS

Eventuell mQssen Sie diesen Vorgang einige Male durchfOhren, falls es beim ersten Mal nicht funktionieren sollte.

Bitte halten Sie sich an die folgenden Empfehlungen, damit Ihr Produkt for lange Zeit weiter problemlos I~uft:

  • Halten Sie den Transmitter von Hitze und

Feuchtigkeit fern. •    Legen Sie den Transmitter nicht in direktes

Sonnenlicht oder an heil~e Pl~tze. Hohe Temperaturen verk0rzen die Lebensdauer des Transmitters, des Akkus und der internen Leiterplatte.

Versuchen Sie nicht, das Produkt zu zerlegen. Dadurch k6nnen schwere Sch&den entstehen.

o    Lassen Sie den Transmitter nicht auf harte

Oberfl~chen fallen. Das kann die internen Schaltkreise besch~digen.

o Benutzen Sie keine Chemikalien oder

Putzmittel, um das Produkt zu reinigen.

° Kratzen Sie nicht mit scharfen

Gegenst&nden an der Oberfl&che des Transmitters.

ProbUembehebung

Mein Transmitter I~sst sich nicht einschalten.

Bitte OberprOfen Sie, ob der TT-BA01 genug Strom hat und laden Sie ihn gegebenenfalls auf. Verbinden Sie den Transmitter mit einem Ladeger~t und kontrollieren Sie, ob die LED Anzeige rot leuchtet.

F: Ich habe Probleme mit dem Verbindungsaufbau zu meinem Bluetoothger~it.

A: Bitte 0berpr0fen Sie folgendes:

  • Bitte stellen Sie sicher, dass Ihr Blue-

toothger~t das A2DP unterstOtzt.



– 19-                                                                                                                   -20-



F:



A;



A:



F”



     A: Der TT-BA01 ist ein Bluetooth Transmitter                      mindestens 4 stunden iang auf, weil das

(Sender) und KEIN Empf~nger. Sie m~Jssen

Ger&t eine voile Aufladung benBtigt. Achten



Schalten Sie alle anderen Bluetoothger~te in der Umgebung AUS.

Stellen Sie sicher, dass der TT-BA01 und Ihr Ger~t sich nebeneinander oder nicht weiter als 90 cm voneinander entfernt befinden.

Schalten Sie den TT-BA01 in den Verbindungsmodus (LED blinkt abwechselnd rot und blau).

Sie mL~ssen eventuell den Speicher 16schen. Bitte lesen Sie dazu die Anweisungen im Abschnitt ,,Wie man den Speicher IBscht”.

Nach dem Verbindungsaufbau mit meinem Bluetoothger~it kann ich keine Musik von meiner Stereoanlage h6ren.

Bitte 0berprQfen Sie folgendes:

Stellen Sie sicher, dass der Audioeing-angsstecker des Transmitters mit dem Abspielger~t verbunden ist.

Stellen Sie sicher, dass die Anlage Musik abspielt und die Lautst~rke nicht zu niedrig eingestellt ist.

Warum kann ich keine Verbindung mit meinem Smartphone oder iPad herstellen?

den Audiostecker des Transmitters mit einem Abspielger&t verbinden, das kein eigenes Bluetoothsignal erzeugt, wie z.B. Kindle Fire, iPod, TV, Computer, usw. Dann k6nnen Sie eine Bluetoothverbindung mit Ihren Bluetooth KopfhBrern oder Bluetooth Boxen herstellen.

Hinweis: Aufgrund der Bluetooth Komprimierung und Dekomprimierung kann es zu VerzBgerungen beim Abspielen von Audio/Video kommen. Das ist normal bei Transmittern.

F:

A:



Die LED meines Transmitters blinkt rot.

Das signalisiert Ihnen, dass der Akku fast leer ist und der TT-BA01 wieder aufgeladen werden muss.

F: Kann ich den Transmitter benutzen w~ihrend ich ihn auflade?

Ja, wir haben am 01.12.2013 ein Update in den TT-BA01 Transmitter integriert, das dies ermBglicht.

F: Ich habe den TT-BA01 I~ingere Zeit nicht benutzt und jetzt ist der Akku leer. Was soil ich tun?

A: Falls der Transmitter I~nger als 21 Tage

nicht benutzen wurde, laden Sie ihn bitte



– 21 –                                                                                                                     – 22 –



Sie darauf, dass die LED Anzeige einige Stunden braucht, um den Abschluss der Aufladung zu signalisieren.

Technische Hilfe

FQr technische Hilfe schreibenSie uns bitte eineEMail an: support.de@taotronics.com

Bitte senden Sie uns bei der Kontaktaufnahme Ihre Bestellnummer und eine detaillierte Beschreibung des Problems. FQr gewShnlich antworten wir innerhalb von 24 Stunden.

Weitere Informationen finden Sie auf: www. TaoTronics.com

Garantie

Dieses Produkt unterliegt der TaoTronics Material- und Herstellungsgarantie fQr einen Zeitraum von 12 Monaten, gQItig ab Kaufdatum vom autorisierten H&ndler und Vertriebsdienstleister. Falls das Ger&t aufgrund eines Produktionsfehlers defekt sein sollte, kontaktieren Sie bitte sofort den TaoTronics Kundendienst (per EMail unter: support.de@ taotronics.com), um einen Garantieanspruch

zurQcksenden k6nnen.

Folgende F~lle sind von der TaoTronics Garantie ausgeschlossen:

  • Produkt wurde secondhand, used oder von

einem nicht autorisierten H~ndler gekauft

  • Sch~den durch Missbrauch oder falsche

Anwendung

°    Sch~den durch Chemikalien, Feuer,

radioaktive Substanzen, Gift oder

Flessigkeiten •    Sch~den durch Naturkatastrophen oder

hShere Gewalt

  • Sch&den, die einer dritten Partei, Person,

Objekt und darQber hinausgehend entstanden sind

Ohne vorherige Autorisierung durch den H~indler werden Retouren NICHT akzeptiert.

Erkn rung

Wir bieten unseren Kundendienst nur for Produkte an, die von TaoTronic oder einem durch TaoTronics autorisierten H~ndler und Vertriebsdienstleister verkauft wurden. Falls Sie



geltend zu machen. Wit werden Ihnen                        IhrGer~tvoneinemanderen H&ndlergekauft

Anweisungen geben, wie Sie uns das defekte                  haben, wenden Sie sich bitte an Ihren Verk~ufer        Produkt Zwecks Reparatur oder Ersatz                       zur Regelungvon GarantieansprQchen.

– 23 –                                                                                                                  – 24 –



TT-BA01



Muchas gracias per su compra de TaoTronics TT-BA01 Bluetooth Est6reo Transmisor. Per favor lea el manual de usuario atentamente para conocer las caracterfsticas y operaciones mejor. Cualquier duda, per favor envienos un correo a support.es@taotronics.com con los detalles.

audio o video con el tamafio del puerto de 3,5mm y soporta Bluetooth A2DP, tal come Bluetooth est6reo auriculares, Bluetooth altavoces, etc.

Contenidos deP Paquete

/~ble de 3,5mm”‘~

Icon punta hembreI

I& RCA roach° /



Especificaciones



Versibn de Bluetooth Bluetooth V2.1 with EDR. Class I1
Perfil de Bluetooth A2DP. AVRCP
Alcance Efectivo 33 feet (en el espacio abierto)
Voltaje de Entrada DC 5V
Tipo de Carga Universal Micro USB Puerto
Baterfa Li-Polymer baterfa recargable
Tiempo de trabajo/en espera 6-7 horas de trabajo/140 horas en espera
Tiempo de Carga Alrededor de 2 horas
Dimensibn (L*W*H) 2.4,,*0.87,,*0.39, (61,22,10 mm)
Peso 0.03 Ibs (13g)

TT-BA01 es un bluetooth transmisor est6reo de alta definici6n. Y puede decodificar sefiales est6reos de alta definici6n al sefiales digitales de bluetooth. Mt~sica de su tel6fono m6vil, PC o otros dispositivos de audio se puede transmitir inal&mbricamente a su dispositivo est6reo de receptor de bluetooth. Entonces podrfa disfrutar mtJsica en cualquier dispositivo est~reo inal~mbricamente come Smartphone, iPod, Kindle Fire o TV.

Este producto tiene una bateria integrada de Li-polfmero, Io que puede soportar TT-BA01 funcionar 7 horas despu6s de una carga completa.

Sistema Requisite

Cualquier dispositivo o receptor de salida de



– 25 –                                                                                                                     – 26 –



ndentificaciSn de Partes

O LED indicador

Q but6n de Multi-funci6n

(~) Audio-in Enchufe de 3,5mm

Q Micro USB puerto de carga



  1. Encender/Apagar el Transmisor



Funcidn Operacibn LED indicador
Encenderlo Pulsebot6n de multi-funci6n para 3segundos hasta que el indacador brilla en azul El azul LED se enciende
Apagarlo Pulsebotdn de multi-funci6n para 3segundos hasta que el indicador brilla en rojo Indicador brillar~ en rojo tres vecesy se apagar& luego
3. LED indicador



2)



LED Color Estado del Transmisor
Rojo y Azul LEDs brillan alternativamente Modo de Emparejamiento
Azul LED brilla dos veces cada 5 segundos Est~ listo para usar
Azul LED brilla una vez cada 10 segundos Conexionado con Bluetooth
3)



&C6mo se usa?

  1. Carga

El transmisor se puede cargar completamente alrededor de 2 horas. Le recomendamos que carga el dispositivo por Io menos 4 horas antes del primer uso

Cargar el transmisor

1) Enchufe el micro-USB del cable de carga

en la puerta de carga del transmisor

Enchufe el USB puerto del cable de carga en un USB adaptador de carga o cualquier USB puerto activo

El LED se encender~ en rojo cuando est~ cargado. Se apagar~ autom&ticamente cuando se carga completamente.

Nota: Puede utilizar el TT-BA01 cuando est~ cargando. El circuito interno se proteje desde el exceso de carga



– 27 –                                                                                                                     – 28 –



  1. Emparejamiento de Bluetooth

Nota: Antes del emparejamiento, por favor asegure de que su receptor de Bluetooth soporta A2DP (Advanced Audio Distribution Profile).

Para emparejar su TT-BA01 con los otros dispositivos de Bluetooth, tiene que tocar el TT-BA01 en el modo de emparejamiento. Se indica por el indicador de LED, Io que est~ brillado en rojo y azul alternativamente

1) Empezamos desde que se apaga el TT-BA01.

Por favor asegure que no hay otro dispositivo en el modo de emparejamiento.

2) Ponga el TT-BA01 junto con su dispositivo

para recibir Bluetooth dentro de la distancia de 3 feet.

3) Pulse y mantenga el Bot6n de Multi-Funci6n para 6-7 segundos o hasta que el indicador de LED est~ brillado en rojo y azul alternativamene. Puede ver la luz azul parpadeada primero. Y mantenga en pulsar el bot6n, luego la luz cambia a brillar en azul y rojo.

4) Ahora TT-BA01 est~ en el modo de

emparejamiento. Por favor sigue las instrucciones de su dipositivo de recibir

Bluetooth a tocar al modo de emparejamiento y puede emparejar con TT-BA01 autom~ticamente.

5) Una vez emparejado con 6xito, el indicador

LED cambiarA en rojo y brillar~ una vez cada 10 segundos.

Nota:

Si requiere un c6digo de PIN para el emparejamiento, por favor trate los c6digos sig uientes:”0000″ “1234” “1111” or “8888”.

Cuando su dispositivo se enciende, conectar~ autom~ticamente con el t~ltimo dispositivo emparejado.Para emparejar con los otros dispositivos, primero apague el dispositivo del viejo emparejamiento, y empareja el transmisor con el nuevo dispositivo usando los mismos pasos arriba.

El TT-BA01 estar& en el modo de emparejamiento para 2 minutos a Io m~s si no se encontra ning6n dispositivo emparejado. Posteriormente entrarA en el modo de espera hasta que se apaga

El TT-BA01 entrar& en el modo de espera si se apagan los dispositivos emparejados o descontacta Bluetooth

cargando



– 29 –                                                                                                                     – 30 –



Cuando la unidad est~ cargando, el LED rojo est& brillando constantemente hasta que termina la carga. Para evitar las confusiones cuando est~ cargado y utilizado al mismo tiempo, le recomendamos que hace el emparejamiento primero, y luego comienza a cargarlo.

  1. Reinicializar

Algunas veces, el TT-BA01 rechazar~ a emparejar con los otros dispositivos aunque est& en el modo de emparejamiento con la luz parpadeando en azul y rojo. Hay que reinicializar el transmisor a brillar y puede emparejarse otra vez.

Para reinicializar el transmisor:

Mantenga el transmisorlejos de calory humedad.

No Io ponga este producto debajo directamente la luz del sol o lugares calores. Alta temperatura va a acortar la vida del dispositivo electr6nico y su bateria

No intente dividir este producto, que se puede hacer dado f&cilmente.

No Io deje tirar al suelo o al cualquier artfculo duro, que puede romper el circuito interior.

No Io limpie con agentes quimicos a este producto.

No Io raspe a la superficie del producto con cosas puntiagudas.



° Enciende el transmisor



° Presione dos veces el bot6n de encendido

  • Apaga el transmisor

Podria probar varias veces si no funciona con su primer intento.

Mantenimiento

Antes de utilizar este producto, por favor lea las siguientes recomendaciones, estos consejos

Preguntas & Respuestas Frecuentes

P: &Per qu~ no puedo encender mi transmisor TT-BA01?

R: Por favor asegure si el transmisor tiene suficiente energia para funcionar. Si no, hay que recargarlo antes de utilizar.

P:Tengo problemas conexion,~ndolo y



pueden ampliar la vida del transmisor y la                                emparej~ndolo con mi dispositivo de

bateria,                                                                                       bluetooth

-31 –                                                                                                                 – 32 –



Q-



P;



A:



Q:



A:



P:



A:



conexionarlo con un dispositivo cual no                                                        ! tiene bluetooth tal como Kindle Fire, iPod,



Por favor chequea los siguientes:

Por favor examine si su dispositivo de bluetooth soporta bluetooth A2DP.



Confirme que el transmisor y su dispositivo est~n en la distancia requisita de emparejamiento de 1 metro.

Examine si los dos dispositivos est~n en el modo de emparejamiento.

Limpie la memoria del transmisor. Siga “~,C6mo limpiar la memoria?” en concreto.

Despu~s de conectar y emparejar con mi Bluetooth dispositivo, no puedo oir mt~sica desde mi sistema de sonido

R: Por favor chequea los siguientes:

Asegure que el transmisor est~ conectado bien con el jugador

Asegure que el jugador est~ jugando la mt~sica y el volumen ya se enciende.

&Por qu~ no puedo emparejar el transmisor con mi smartphone y iPad?

TT-BA01 es un Bluetooth transmisor, NO ES UN RECEPTOR. $61o puede usted

TV, ordenador etc. Luego empar6jelo con su Bluetooth auriculares/altavoces.

Nota: A causa de la compresi6n/descompresi6n de Bluetooth, el retraso de audio/video es muy comt3n entre todos los transmisores.

P: El indicador est& brillando en rojo

R: Eso le avisa el bajo nivel de la energfa del

transmisor y se necesito recargar pronto.

&Puedo utilizar el transmisor cuando est& cargando?

Si, hemos mejorado el TT-BA01 transmisor desde Dec 1 2013, por eso ahora puede utilizarlo en el proceso de carga

No he utilizado el TT-BA01 por un tiempo, ahora la bateria ya est& muerta. &Cbmo puedo hacer?

Si el dispositivo no se ha utilizad0 m~s de 21 dfas, por favor c&rguelo para 4 horas por Io menos porque la baterfa necesita una carga completa y varias horas despu6s la luz de LED indicador le muestra que la recarga ya est~ completa.



– 33 –                                                                                                                     – 34 –



Asistencia Tbcnica



Para la asistencia t6cnica, por favor envie correo a SUPPORT.ES@TAOTRONICS. COMcon su ntJmero del pedido y las descripciones detalladas de su duda. Normalmente vamos a responderle dentro de 24 horas.

Para m~s informaciones, por favor visite www.

TaoTronics.com

Garantia

Ofrecemos una garantia con el periodo de 12 meses desde el dfa de compra original de los distribuidores autorizados. Si el dispositivo falla debido a un defecto de fabricaci6n, por favor contacte TaoTronics Support (support@ taotronics.com) inmediatamente para iniciar una reclamaci6n de garantfa. Le indicaremos c6mo devuelva la unidad defectuosa para reparaci6n o reemplazo

Esta garantia no soporta estropeado a causa

de las siguientes situaciones:

° Dispositivo comprado como segunda mano,

usado o desde vendedor desautorizado

  • DaSado por mal uso o acci6n abusada

Da5ado por qufmicos, fuego, sustancia

radiactiva, veneno, I[quido

Dadado pot desastre natural

  • DaSado por cualquiera tercera parte/

persona/objeto y m~s all~

Ninguna devolucibn ser& aceptada sin la autorizacibn de vendedor.

Declaraci6n

S61o podemos ofrecer servicios de postventa de los productos que se venden por TaoTronics o TaoTronics autorizados minorista y el distribuidor. Si usted ha comprado el dispositivo desde un lugar diferente, por favor p6ngase en contacto con el vendedor para cuestiones de devoluci6n y de garantia



– 35 –                                                                                                                     – 36 –



Merci pour I’achat du Transmetteur St~r6o Bluetooth. Veuillez lire attentivement ce manuel pour connaftre son op6ration et ses sp6cifications. En cas de doute, veuillez bien nous 6crire avec vos probl~mes d6taill6s

I’adresse email : Support.fr@taotronics.com.

Un appareil de r~ception de st6r6o Bluetooth qui soutient le profil de Bluetooth A2DP, tels que les casques audio de st6r6o Bluetooth, haut-parleur Bluetooth, etc…

Contenu du paquet



Bntroduction



Le TT-BA01 est un transmetteur st~r6o



Bluetooth de haute d6finition, qui peut rendre n’importe quel appareil st6r6o un appareil sans fil! Elle fonctionne en d6codant les



Sp6cifications



Version de bluetooth Bluetooth V2.1 avec EDR, Classe I1
Bluetooth Profile A2DP, AVRCP
Distance d’dffectivement Environ 10 m~tres (darts un espace ouvert)
Puissance de recharge DC 5V
Type de recharge Port de Micro USB universel
Batterie Batterie rechargeable au LI-polym6re
Temps de travail/en veille 6-7 h de travail / 140 h en veille
Temps de recharge Environ 2 h
Dimefisiofi (L*L*H) 61″22″10 mm
Poids 13g

signaux st6r6o de haute d6finition en signaux num6riques Bluetooth qui peuvent 8tre transmis ~ votre appareil de r6ception du st6r6o Bluetooth. Ainsi, vous pouvez profiter de toute la musique de votre t616phone mobile non-Bluetooth, iPod, Kindle Fire et meme la t616vision, sans il!!

Ce produit dispose d’une batterie int6gr6e au lithium. La dur6e de la batterie sera au moins 7 heures apr~s changement complete.

Configuration Recommand e

Un lecteur de musique ou d~audio avec une prise de sortie audio de 3,5mm.



– 37 –                                                                                                                     – 38 –



Aper§u de TT°BA01

0 LED indicateur                          ®~ (~) Bouton de multi-fonction       (~

® Prise d’audio-entr~e 3,5mm

@ Port de recharge Micro USB

Remarque • Vous pouvez utiliser le TT-BA01 quand il est en train de recharger. Son circuit interne est prot6g6 contre les sur-charge



2. D~marrage et s’arr6te



Fonction Opdration LED indicateur
D6marrage Appuyez sur le bouton d’alimentation pendant 3-5 secondes jusqu’& LED clignote en bleu LED bleu s’allume
Arr#te Appuyez sur le bouton d’alimentation pendant environ 3 secondes jusqu’& LED clignote en rouge LED clignote en rouge pour trois fois et puis s’~teint
2)



3. LED indicateur



Couleur de LED L’6tat du transmetteur
LED rouge et bleu clignotent en alternance Mode d’appariement
LED bleu clignote 2 fois chaque 5 secondes Mode de veille
LED rouge clignote chaque 10 secondes Connexion Bluetooth ~tablie

Commencer ‘utilisation

  1. Charger votre transmetteur

Le transmetteur peut 6tre compl6tement recharg6 en environ 2 h. Nous vous conseillons de le charger au moins de 4 heures avant la premiere utilisation.

Pour charger le transmetteur

1) Ins6rez I’extr~mit6 du c&ble de charge

de Micro USB au port de recharge du

transmetteur

Branchez I’extr6mit6 du c&ble de charge d’USB & un adaptateur de charge d’USB ou & n’importe quel port d’USB actif

L’indicateur LED s’allume en rouge Iors du chargement et s’6teint automatiquement



3)

quand le transmetteur est €ompl6tement charg~e



– 39 –                                                                                                                     – 4O –



4)



Appariement avec les pdriphdriques Bluetooth



Maintenant le transmetteur TT-BA01 est en mode d’appariement. Veuillez suivre les instructions de votre appareil de r6ception Bluetooth pour le mettre aussi en mode d’appariement, puis il doit appairer automatiquement avec le TT-BA01.



=



Remarque: Avant d’appairer le Bluetooth, veuillez bien assurer que vos appareils de rdception de Bluetooth s’adaptent au Bluetooth A2DP (Advanced Audio Distribution Profile)



5)



Si la connexion est bon, LED indicateur s’allume en rouge, et puis cligonte une fois chaque 10 secondes.



Afin d’appairer votre TT-BA01 avec un autre p~riph6rique Bluetooth, veillez mettre le TT-BA01 en mode d’appariement. Ceci est indiqu6 par LED indicateur rouge et bleu clignotant en alternance.



Remarque :



S’il faut un code PIN pour I’appariement, veuillez

essayer les codes suivants : (( 0000 >>, (( 1234 >>, (( 1111 >> et (( 8888 >>



1)



Commencez par le TT-BA01 6teint.

Veuillez assurer que d’autres p6riph6riques

Bluetooth autour ne sont pas en mode

d’appariement.



Le transmetteur se connectera automatiquement avec rappareil qu’est appari6 la derni6re lois. Si vous avez besoin de connecter le transmetteur avec des autres appareils Bluetooth, veuillez fermer le dernier appareil r6cepteur appari6, et suivre les 6tapes ci-dessus, enfin apparier le transmetteur avec le nouvel appareil.



2)



Maintenez la distance entre votre

transmetteur et votre appareil de r6ception Bluetooth moins de 1 m6tre.



3)



Appuyez sur le bouton d’alimentation pendant 6-7 secondes ou jusqu’,~ LED indicateur rouge et bleu clignote en alternance. Vous verrez que LED bleu clignote en premier. II suffit de continuer ~ appuyer sur le bouton et LED va



Le TT-BA01 restera en mode d’appariement pendant 2 minutes tout au plus si aucun appareil d’appairage se trouve. Ensuite, il se met en mode de veille jusqu’~ ce qu’il s’6teigne.

Le TT-BA01 passe en mode de veille si



bientot changer en chgnotement alternatif en                        I’appareil de reception Bluetooth est etemt

bleu et en rouge,                                                                   ou Bluetooth est d6connect&



– 41 –                                                                                                                     – 42 –



Le TT-BA01 peut ~tre utilis6 quand il est en train de charger.

Lorsque le TT-BA01 est en charge, LED rouge s’allume constamment jusqu’& ce que le chargement soit termin& Pour ~viter toute confusion quand vous chargez et utilisez le transmetteur en m6me temps, nous vous recommandons d’appairer d’abord I’appareil de r~ception, puis de commencer ~ charger le transmetteur.

  1. Remettre le TT-BA01

Parfois, le TT-BA01 refusera d’appairer avec d’autres appareils, m6me s’il est en mode d’appariement avec le clignotement alternatif en rouge et en bleu de LED. Vous aurez besoin de remettre le transmetteur pour le faire appairer de nouveau.

Pour remettre le transmetteur :

  • Allumez le transmetteur
  • Appuyez 2 fois sur le bouton d’alimentation

Entretien et maintenance

Veuillez lire les conseils suivants pour obtenir une Iongue esp6rance de vie de votre produit.

Ne mettez pas votre transmetteur dans la

situation chaud ou humide.

  • Ne mettez-le pas directement sous le soleil

ou dans un endroit chaud, la vie de dur~e du transmetteur, de la batterie ou de la carte de

circuit interne sera r6duite dans la situation d’haute temp6rature.

°    N’ essayez pas de d6monter le transmetteur.

Cela peut causer de graves dommages

°    Evitez la chute d’appareil d’un endroit 61ev6

ou de le frapper sur les substances dures,

ceia causerait I’endommagement int6rieur.

  • N’utilisez pas les produits chimiques ou

d~tergents pour nettoyer votre appareil.

° Ne rayez pas ia surface avec les objets

tranchants.



  • Eteignez le transmetteur 1. Q: Pourquoi mon transmetteur ne peut

Vous avez peut-~tre ~ essayer ies 6tapes ci-                          pas 6tre allum~?

dessus pour plusieurs fois si !e transmetteu[ ne                 A~ Veui!!ez !e recharger                                !a

fonctionne pas apr~s votre premiere tentativepuissance de batterie de TT-BA01 est                                                                                                    suffisante. Branchez le transmetteur ~ un

-43 –                                                                                                                 – 44 –



.



A:



5)



,



.



A:



chargeur pour v6rifier si LED indicateur s’allumera en rouge.

Q: Pourquoi le TT-BA01 ne peut pas s’apparier et se connecter avec mes appareils de rSception Bluetooth?

A: Veuillez v6rifier les points suivants:

1) Confirmez-vous que I’appareil de r6ception

Bluetooth soutient I’A2DP.

2) Assurez-vous que vous avez 6teint d’autres appareils de r6ception Bluetooth autour.

3) Assurez-vous que la distance entre le TT-

BA01 et I’appareil de r~ception Bluetooth est moins de 1 m#tre en appariant.

4) Mettez-vous le TT-BA01 en mode

d’appariement avec le clignotement alternatif en rouge et en bleu de LED indicateur.

Vous avez peut-#tre besoin d’effacer la m6moire. Veuillez bien lire << comment effacer la m6moire >> pour obtenir des instructions.

Q: Pourquoi je ne peux pas ~couter la musique par les appareils de rdception Bluetooth apr~s I’appairage?

A: Veuillez v6rifier les points suivants:

2) Assurez-vous que le lecteur joue de la musique et le volume est mont6.

  1. Q: Pourquoi le TT-BA01 ne peut pas ~tre appair~ avec mon smart phone ou i.Pad?

Le TT-BA01 est un transmetteur Bluetooth, PAS un r6cepteur. Branchez-vous le TT-BA01 dans un appareil sans r6cepteur Bluetooth, par exemple le KindleFire, iPod, t~l~viseur, etc. Ensuite, il appariera automatiquement avec votre casque audio/ haut-parleur de st~r6o Bluetooth pendant le processus d’appairage.

Remarque: En raison de compression / d6compression de Bluetooth, il peut y avoir un retard dans I’utilisation audio / vid6o. C’est normal chez tousles transmetteurs.

  1. Q: Pourquoi mon 1-F-BA01 cligonte en rouge? A: Cela signifie que la batterie est faible et doit

#tre recharg6e rapidement.

Q: Puis-je utiliser mon transmetteur quand il est en train de recharger?

Oui, nous avons mis & nouveau le transmetteur TT-BA01 depuis le ler d~cembre 2013, alors



maintenant vous pouvez I’utiliser pendant le

1) Assurez-vous que le transmetteur connecte

bien avec le lecteur,                                                             chargement.

-45 –                                                                                                                 – 46 –



.



A:



Q: Je n’ai pas utilisd le TT-BA01 pendant un certain temps, maintenant la batterie est morte. Que puis-je faire?

Si letransmetteur n’a pas ~t6 utilis6 pendant plus de 21 jours, veuillez le recharger pour au moins 4 h, c’est parce que la batterie aura besoin d’une charge compl6te. Soyez conscient que LED indicateur peut prendre plusieurs heures pour vous montrer I’ach6vement de recharge.

Assistance technique

Pour obtenir une assistance technique, veuillez nous 6crire avec votre num~ro de commande et une description d6taill6e de votre probl6me ~ I’adresse emai suivant: SUPPORT.FR@TAOTRONICS.COM. Nous r6pondons normalement ~ vos demandes de renseignements dans les 24 heures.

Pour plus d’informations, veuiltez visiter notre site: www.TaoTronics.com.

La Garantie

Le TT-BA01, couvert par les pi6ces et le main-d’oeuvre de la marque TaoTronics, est sous garantie pendant 12 mois ~ compter de la

veuillez contacter TaoTronics Support (support. fr@taotronics.com) imm6diatement pour lancer une demande de garantie. Nous vous donnerons des instructions qui vous aideront

nous retourner le produit d6fectueux pour la r~paration ou le remplacement.

Cette garantie ne couvre pas les produits endommag6s par les conditions suivants:

  • Appareil achet6 en 26me main, utilis6 ou de

vendeurs non autoris~s

  • Endommag~ par usage impropre ou abusif • Endommag6 par produits chimiques, feu,

substance radioactive, poison ou liquide

  • Endommag6 par des catastrophes naturelles • Dommages caus6s par 36me parti /

personne / objet et autre

Aucun retour ne sera accept6 sans rautorisation de vendeur.

D6claration

Nous fournissons seulement des services apr#s-vente pour les produits qui sont vendus par TaoTronics ou les d6taillants et distributeurs autoris6s par TaoTronics. Si vous avez achet~



date de l!achat initial des d6taillants et des                     votm appareil d:un autre patti, veuillez contacte[

distributeurs autoris6s. Si le transmetteur tombe                le vendeur-I~ pour les questions de retour et de    en panne & cause d’un d6faut de fabrication,                   garantie.

–       47 –                                                                                                           – 48 –



Versione Bluetooth Bluetooth V2.1 con EDR, Classe II
Profilo Bluetooth A2DP, AVRCP
Gamma 33 piedi (nello spazio aperto)
Potenza di Ricarica DC 5V
Tipo di Ricarica Porta Micro USB Universale
Batteria Batteria Ricaricabile Li Polymer
Tempo di Durata / Standby 6-7 ore di durata / 140 ore di standby
Tempo di Ricarica Circa 2 ore
Dimensione(L*W*H) 61″22″10 mm
Peso 13g

Grazie per aver acquisto il TaoTronics TT-BA01 Trasmettitore Bluetooth Stereo. Si prega di leggere attentamente questo manuale per conoscere le caratteristiche e le operazioni. Se avrebbe qualsiasi dubbio, si prega di contattarci con support.it@taotronics.com

Introduzione

II TT-BA01 6 un Tramettitore Bluetooth Stereo

ad alta definizione, che si pu6 rendere qualsiasi dispositivo stereo di un dispositivo WirelessJ Decodifica i segnali stereo ad alta definizione ai segnali digitali Bluetooth che trasmettono al dispositivo ricevente Bluetooth. Potrebbe godere della musica con i dispositivi non-Bluetooth come cellulare, iPod, Kindle Fire e anche Tk/in modalit& wireless!

Questo prodotto ha una batteria al litio incorporata che si pu6 durare per 7 ore quando si ~ completamente caricato.

Requisiti Sistema

Un dispositivo audio o riproduzione musica con

un jack di uscita audio da 3.5mm.

Accoppiarsi quatsiasi dispositivo ricevente Bluetooth Stereo che supporta il profilo

Bluetooth A2DP, come Auricolari e Altoparlanti Bluetooth, ecc.

Confezione

Ijackda 3,5mm |

I femmina a 2 RcaI

I maschi.   ,~ |



– 49 –                                                                                                                     – 5O –



O Indicatore LED         ®7

Q Pulsante di Pontenza       ®’)~!~1 ~}~.r,o~

G 3.5mm audio-in plug

® Porta Micro USB di ricarica

  1. Accendere / Spegnere il dispositivo



Funzione Operazione Indicatore LED
Accendere Premere e tenere il pulsante di pontenza per 3-5 secondi fino a il LED lampeggia Blu II LED Blu si accende
Spegnere Premere e tenere il pulsante di pontenza per circa 3 secondi flno a il LED lampeggia Rosso IILED Rosso siaccede per 3 volte e poisi spegne
3. Indicatore LED



2)



Colore LED Stato di Trasmettitore
II LED Lampeggia alternatamente in rosso e blu Modalit~ di accoppiamento
II LED blu lampeggia 2 volte ogni 5 secondi Modalit& di standby
!! LED [osso lampeggia ! volta ogni 10 secondi Bluetooth connesso
3)



Guida Untroduttiva

1 .Ricarica

Questo trasmettitore si pu6 ricaricare completamente per 2 ore. Si consiglia di ricaricare per almeno 4 ore prima di utilizzarlo.

Per ricaricare il trasmettitore

1) Inserire I’estremit& maschio del cavo USB nella porta di ricarica del trasmettitore.

Plusare I’estremit& maschio del cavo USB a un adattatore di ricarica USB o alter porte USB.

Quando si ricarica, il LED diventer~ a rosso. Si spegne automaticamente quando il trasmettitore ~ completamente ricarica.

Nota: Potrebbe utilizzare il TT-BA01 quando …. sie ricarica. II circuito interno# protetto da sovraccarica.



– 51 –                                                                                                                     – 52 –



– 53



  1. Accoppiare Bluetooth

*   Nota: prima dell’accoppiamento, si

prega di assicurarsi che i Suoi dispositivi riceventi Bluetooth supportano Bluetooth A2DP (Advanced Audio Distribution Profile).

Per accoppiarsi con altri dispositivi, necessario portare il TT-BA01 in modalita di accoppiamento, ci6 che I’indicatore LED lampeggia alternativamente rosso e blu.

1) Cominciare dallo Stato disattivato. Si

prega di confermare che nessun altro dispositivo Bluetooth intorno 6 in modalita di accoppiamento.

2) Mettere il Trasmettitore e il dispositivo

ricevente entro 1 metro.

3) Premere e tenere premuto il pulsante

di pontenza per 6-7 secondi o fino a quando il LED lampeggia alternatamente in rosso e blu. II LED Blu lampeggia prima, tenendo premuto il plusante e il LED sara diventato blue rosso.

4) Adesso il TT-BA01 sta in modalita di accoppiamento. Si prega di seguire le istruzione del Suo dispositivo Bluetooth per

accoppiamonto con il TT-BA01.

5) Quando i dispositivi sono accoppiati con successo, il LED diventa rosso e poi lampeggia una volta ogni 10 secondi.

Nota:

Se viene richiesto un codice PIN per accoppiamento, si prega di provare i codici seguenti: “0000” “1234” “1111” or “8888”.

Quando il trasmettitore ~ acceso, si collega automaticamente con I’ultimo dispositivo accoppiato. Per accoppiarlo con gli altri dispositivi, spegnersi prima I’ultimo dispositivo di ricezione e quindi accoppiare il trasmettitore al nuovo dispositivo.

II TT-BA01 sara rimasto in modalita di accoppiamento per 2 secondi al massimo se non trovarsi dispositivo accoppiato. Poi, si entra alia modalita standby fino a quando si scaricato.

II TT-BA01 sara entrato in modalita di standby se il dispositivo accoppiato 6 chiuso o la connessione Bluetooth viene interrotta.

  • II TT-BA01 ~ in grado di essere utilizzato

durante la carica.

lampeggla costantemente fino a quando la carica 6 finita. Per evitare confusione quando – 54



si carica e si utilizza allo stesso tempo, consigliamo di accoppiare il dispositivo prima, e poi avviare la carica.

  1. Ripristinare

A volte, il TT-BA01 si rifiuter~ di accoppiare con altri dispositivi anche se 6 in modalit~ di accoppiamento con lampeggiata del rosso e blu. In questo caso, 6 necessario reimpostare il Trasmettitore per renderlo fresco e di voler accoppiare nuovamente.

Per ripristinare il Trasmettitore:

  • Accendere il Trasmettitore
  • Premere dobbio il pulsante di pontenza. • Spegnere ilTrasmettitore

Potrebbe essere necessario provare un paio di volte se non funziona al primo tentative.

Cura e Manutenzione

Si prega di leggere I seguenti suggerimenti per rnantenere il Suo prodotto in funzionamento per un lungo tempo a venire.

Non posizionare direttamente il prodotto alia luce solare o negli ambienti caldi. Elevate temperature potrebbero abbreviare la durata della vita del trasmettitore.

Non tentare di smontare il prodotto. Potrebbe causare gravi danni.

Non far cadere o buttare il trasmettitore su superfici dure perch6 potrebbe causare la danneggiata di circuito interno.

Non usare prodotti chimici o detergent per pulire il prodotto.

Non graffiare la superficie con oggetti appuntiti.

FAQ

Q: Non posso accedere il trasmettitore.

A: Si prega di ricaricarlo e assicurarsi che il TT-

BA01 ha una carica sufficiente. Rendere ricaricarsi e vede se il LED diventa rosso.

Q: Ho dei problerni dell’accoppiamento e il

collegamento al dispositivo Bluetooth.

A: Si prega di controllare le seguenti fasi:



calore e umidit~.



Bluetooth supporta A2DR



– 55 –                                                                                                                     – 56 –



A;



a.



  • Si prega di confermare che altri dispositivi

Bluetooth sono chiusi.

Si prega di confermare che il TT-BA01 eil Suo dispositivo sono vicini a 1 metro.

I~ necessario di rendere il TT-BA01 entrare nella modalit& di accoppiamento, ci6 che il LED rosso e blu lampeggiano alternativamente.

Potrebbe essere necassario cancellare la memoria. Si prega di leggere “come cancellare la memoria” per le istruzioni.

Q: Non riesco a sentire la musica dal mio

dispositivo dopo aver accoppiato con il mio dispositivo.

A: Si prega di controllare le seguenti fasi:

  • Assicurarsi che il trasmettitore ~ collegato

con il player.

  • Assicurarsi che il player sta riproducendo la

musica e il volume sia acceso.

Q: Perch~ non si pub accoppiare con il mio smartphone o iPad?

A: II TT-BA01 6 un trasmettitore Bluetooth, non

trasmettitore a un dispositivo generale non-

Bluetooth audio come un kindle Fire, iPod, TV, computer, ecc. Poi accoppiarsi con il Bluetooth cuffie/altoparlante.

Nota: A causa del Bluetooth compressione/ decompressione, ci sara un ritardo in audio/ video. Questo ~ normale tra tutti i tramettitori.

Q: II mio dispositivo lampeggia in rosso.

A: Ci6 significa che la batteria 6 scarica e deve

essere ricaricata al pie presto.

Q: Posso utilizzare il mio trasmettitore mentre si ~ carica?

Si, abbiamo aggiornato il trasmettitore TT-BA01, quindi ora 6 possible utilizzarlo durante la ricarica.

Non ho usato il TT-BA01 per lungo tempo, ora la batteria ~ “morta”, cosa posso fare?

Se I’unit~ non ~ stata utilizzata per pie di 21 giorni, si prega di caricare I’unit& per almeno 4 ore, perch6 la batteria ha bisogno di una carica completa.



Assistenza di Tecnoiogia



Per quanto riguarda I’assistenza di tecnologia, si prega di inviare email a support.it@taotronics. corn con il Suo ordine e la descrizione del Suo problema. Di solito rispoderemmo entro 24 ore.

Per quanto riguarda ulteriore imformazioni, si prega di vedere www.TaoTronics.com.

Offriamo un anno di garanzia sul prodotto dalla data dell’acquisto originale per I difetti di fabbricazione. Se I’apparecchio ~ danneggiato a causa di un difetto di fabbricazione, si prega di contattare immediatamente TaoTronics Supporto (support.it@taotronics.com). L’istruiremmo la restituzione del prodotto difettoso per la riparazione e la sostituzione.

Questi casi non si sono inclusi nella garanzia del prodotto:

  • Un prodotto derivato a second mano,

che ~ usato o 6 arrivato dai venditori non

  • Danni causati a disastro naturale.

o Danni causati ad alcun partito / persona /

oggetto terzo e altri.

Nessun ritorno sara accettato senza autorizzazione di venditore.

DichiarazJone

Possiamo fornire soltanto i servizi post-vendita per i prodotti che vengono venduti da TaoTronics o TaoTronics autorizzati rivenditori e distributori. Se ha acquisto it Suo apparecchio da un posto diverso, si prega di contattare il venditore per le questioni di ritorno e di garanzia.



autorizatti.

  • Danni causati a uso improprio, abuso.

radioattiva, veleno, liquid.



Heated Mattress Pad Comparison

After having tried several heated mattress pads here are my thoughts on the pros and cons of several types of features that you can shop for.

Wire Size

heated-mattress-padMany reviews focus on if you can feel the wires or not in the mattress pad. The traditional mattress pads run 120 volts moderate sized wires which you can generally feel unless you buy one with allot of padding. While you can feel the wires you quickly forget that they are there. A second type of mattress pad uses very thin wires and low voltage around 20 – 30 volts. With this type of mattress you can literally not feel the wires on your back when you are lying down. Be sure the check the overall wattage, however because this type may not consume as much total power making it heat up slightly slower or not each as high of a temperature.

Control Box

The control box on heated mattress pads ranges from a simple dial to a digital remote control. In my experience selecting a heat level from a digital control takes a lot longer than just twisting a dial. Another consideration is that one mattress pad one the market has a built in shutoff timer that you can adjust. This is a nice feature if you heat up the bed just before you fall asleep and don’t use it throughout the night.

Where is an example with a shutoff timer: Serta Plush Velour Electric Heated Mattress Pad with Programmable Digital Controller, Queen Size, White

Bottom Line

Overall my personal preference is for the low voltage thin wire heated mattress pads because of the simplicity of the control box and the fact that the heating wires are completely undetectable. This type of pad also has the advantage that you can unplug it and put it through the regular washing machine. If this sounds like your preferences as well I would recommend: Soft Heat Micro-Plush Top Low-Voltage Electric Heated Queen Mattress Pad, White

Bluetooth Earbud Comparison

After having used Bluetooth earbuds for many years here are my observations on which are the best Bluetooth earbuds on the market.

Moto Hint

If you’re looking for a simple one ear solution for listening while staying alert then the Moto Hint is an great option. It is discreet and convenient. It’s also light weight enough that I can sometimes forget that I am wearing it. The battery life is descent and the audio quality is average. Overall I use this option only when listening discreetly is the most important consideration.

Aftershokz Bone Phones

For stereo sound while still staying alert to surroundings I recommend Aftershokz brand aftershokzbone conduction headphones or “bone phones”. These don’t cover your ear so you can still hear your surroundings and the bone phones are reasonably loud enough to listen to and enjoy while doing most activities. Personally they are what I end up wearing the most around the house. People around you can hear sound leak out so they are not good for work or other public places indoors unless you turn the volume quite low.

Bragi

On the high end Bragi makes a $300 pair of wireless Bluetooth earbuds that can isolate noise or pipe in noise from your surroundings depending on how you want to use them. These are a great all around option depending on how much you want to spend.

Etymotic Research

Finally Etymotic Research makes the best noise isolating earbuds I’ve ever used. They are all cord and plug earbuds but are so exceptional that they are worth the hassle of a cord. For example, the noise isolation is so good that I can comfortably listen to podcasts while bicycling on off-road trails. I always take the earbuds out when crossing roads however to maintain situational awareness.

So, depending on how you like to listen I would recommend one of these four great earbud options.

Bluetooth Streaming Transmitter Comparison

Bluetooth transmitters are a pretty cheep and easy option to stream sound to speakers or headphones. Not all transmitters are made equal however. Here are my experiences with several transmitters I have recently tried. Here’s the lineup:

Zio 2-In-1 Wireless CSR Bluetooth Audio Music Streaming Switchable Transmitter and Receiver

This transmitter was the least expensive of the three and worked great on initial setup. It would also reconnect to Bluetooth headphones reliably. However, on reconnect the audio quality would always go down and cut in and out once or twice a second. Needless to say this was a deal breaker and I was not able to use this transmitter.

NewRice Wireless Bluetooth 4.0 Music Transmitter

bluetooth-1This transmitter had an interesting round design and also worked quite well when I set it up the first time. It would reconnect to Bluetooth headphones reasonably fast within about 5 seconds but not as fast as the Zeo. The downside of this transmitter for me was that I would routinely have the sound cut out about once a minute for a good 5 or 10 seconds. Again, this clearly did not work for me and I kept looking for a better transmitter.

TaoTronics Bluetooth Transmitter

This transmitter is small and simple and worked great on first setup as did the other two that I tried. This Bluetooth transmitter also reconnected to headphones quite quickly for this class of device in about 2-3 seconds. Thankfully on reconnecting to headphones this transmitter did not have any problems like the first two I tried. Therefore the TaoTronics Bluetooth Transmitter became my top choice and I’ve begun to use it every day with much enjoyment.

Bottom Line

The TaoTronics Bluetooth Transmitter costs about $10 more than other Bluetooth transmitters but is well worth the extra price for ease of use and simplicity of the connection and reconnection process.

NewRice Wireless Bluetooth 4.0 Music Transmitter, Support Two Bluetooth Headphones Or Speakers Simultaneously for TV/MP3/MP4

Download Manual

NewRice Bluetooth Transmitter.pdf

Manual Details

PRODUCT OUTLOOKbluetooth-1

INTRODUCTION

Multi-point Bluetooth Transmitter

Model:H-366T
USER MANUAL

H-366T is designed to transmit audio signal of TV, DVD, MP3 etc. to Bluetooth receivers, earphones or speakers by the Bluetooth wireless technology. To help customers to realize a higher quality wireless household lives.
Welcome to chose our Bluetooth receiver to get a better experience of listening. What’s more, it will make it being available for you to set up your personal pairing password to enjoy a safer and steadier connection by using our Bluetooth transmitter & receiver combination.
Easy operation, connect the product with audio players by a audio cable, without set up after the device turn on.
FEATURES
Exquisite round design with perfect process, mini body, more smaller and lighter.
Multi-point design, one transmitter could connect with two Bluetooth devices at the same time, eg. one BT speaker and BT headsets.
High quality stereo transmission makes sure you can enjoy the auditory feast.

0 The first device blue lights ® 3.5mm audio input
® The Charging red lights ® Power button
(~) The second device blue lights ~) Micro usb charging port
SPECIFICATIONS
Transmission distance: > 10m
Continuously working time: 4 hrs
Charge time: 1.5 hrs
Unit size: 45mm*llmm

Micro usb charging port

After the power is on, one of the blue lights flashes slowly, showing that the connection restoring mode is entered. In his mode, the Bluelooth devices connected previously will be connected automatically.
If the previous Bluetooth device is not reconnected after
1 g seconds of the stadup, two blue lights wiil flash quickly in an alternate way, showing that the paring mode is entered and a new Bluetoolh device wilt be searched.
One of the blue lights is constantly on, showing that one device is connected. The other blue light flashes up, suggesting that the second device is being searched.
If the second device has not been connected after
20 seconds, the search will stop automatically when the blue tight stops flashing. If you want to pair the second device again, you need to press the power button gently to enter the search mode. When the two devices have been connected, Ihe two blue fights will be constantly on.

First step: Turn on the Bluetooth device to
Second step: Connect the TV Bluetooth
and H-366T be paired (Bluetooth speaker or Bluetooth
with the audio cable, headset), and get it ready for the pairing
mode.

Third step: Have a long press on the power button for 2 seconds.

Fratures

(Unit size:45mm*11mm). Small, lightweight and durable . High performance Bluetooth 4.0 (High-Fidelity) with A2DP for enhanced audio quality, allows you to enjoy the stereo music without wire restriction or watch TV quietly (not for answering calls).

  • Work with any type and brand of device such as TV, PC, CD player, iPod, Kindle Fire, MP3/MP4 etc. up to 30 feet working range. Easy pairing with Bluetooth stereo headset, headphones, speakers and other Bluetooth stereo audio enabled system.
  • This one A wireless transmitter with excellent battery life, to 5 hours of play time. with dual mode, you can use it plugged with AC adapter without worrying about the battery.
  • Standard 3.5mm audio socket and cable enable this Bluetooth transmitter to connect to for audio devices
  • NOTE: This is a transmitter not a receiver : Buy NewRice 4.1 version Bluetooth receiver pls search “B00WEKDB78”

DBPOWER 2 MP 5M USB Waterproof Hd 6-led Borescope Endoscope Inspection Tube Camera

Download Manual

Here is the user manual pdf download for the DBPOWER waterproof inspection camera.

DBPOWER waterproof inspection camera.pdf

Download Software

DBPOWER-ViewPlayCap.zip

DBPOWER-AMCAP.zip

Details from the user manual

Waterproof USB wire CAMinspection camera 0
HD 720P
LED switch Adjustable lightness switch

1.The USB Endoscope can be inspected the hard-to-reach or hard-to-see areas. 2.The outer diameter of the Endoscope camera is only 10mm.
3.High resolution 2.0MP with 1/6 CMOS camera.
4.Built-in 6 LED lights in the len for inspecting in the dark environment. 5.USB2.0 interface.
6.Can be used on PC or Laptops, don’t support Tablet PC.
7.Support the Windows XP / Vista / 7 / 8
Function items Spec Description
Samera 1/6″ COMS
Pixel 2.0 Mega Pixels
Resolutions 1600×1200,1280×720, 640×480,352×288…
Capture Resolution Up to 1600X1200
LED Light 6 pcs Adjustable
Brightness Auto
Exposed control Auto
FIN O 2.8
Camera housing diameter lO mm
Wide visual view angle 30°

1. Inserting the CD to the CD-ROM of your computer for installing the ViewPlayCap ‘
successfully, then you can find the ViewPlayCap icon m on the desktop.
2. Connecting the USB Endoscope with your computer’s USB interface, It needs longer
time for the first time.
3. Double-click the ViewPlayCap icon m on the desktop and appear the display window as below. If no image on the display window, click “Device” and select “USB video device”, then you can see the image.
4. The LED lights’ brightness can be adjusted by the
LED adjuster on the USB Repeater;
5. Capture images: Click the icon ~ in the displaywindow.
the pictures will be stored in the pictures favodtes or set up the picture path again as need. You can find the pictures as fallowing way directly: View>Open My Pictures.
6. Video capture: Click “file” option. Select “set capture file”. Setting the file name and location and saving the video, click “Open” to save. Setting up the capture file size, click “OK”; Click “Capture” and Setting up the time limit, thee press “OK”.

inspection camera 2 inspection camera 1

Product Features

Super Hi-Vision–2 Million Pixels CMOS camera
• The flexible camera is waterproof with 8.5mm diameter so that you can inspect area under water, gaps and holes.
• Capture snapshot image or video with 800*600,1024*768,1280*720,600*1200 resolutions.
• 5M Cable length, Silver camera head, updated version. With accessories of mirror, small hook and Magnet tools.
• Free replacement and after sale service available, please buy with confidence.

LED Under Cabinet Lighting from CLEDLIGHT

For anyone interested in the more technical side of LED under cabinet lighting here is a collection of detailed model and/or pricing information currently on the market and available for order from the following company:

CLEDLIGHT Semiconductor Lighting Co.,Ltd
ADD: 8F,Building 1,LangKou HuaMing Industrial Park, LangKou Community,DaLang Street,LongHua District, Shenzhen, China.
Tel: (86)-755-27709811
Fax: (86)-755-27709866
Website: www.cledlight.com


Data Sheet

C01 Extremely Thin Linear LED Light


LAMP

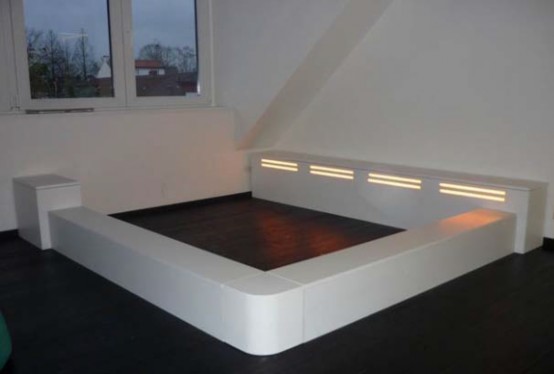

image USE1


USE2



USE3






Plastic connector Connector cable Mounting Clip Led power supply DC receptacle


CLEDLIGHT’s C01 Linear-Led Light is widely used in showcases, display case or furniture. This extremely Thin Linear LED Light is especially applied to hidden/ covert installation. After processed by special optical system, which has patented, this kind of extremely thin linear light indeed becomes a continuous / real linear light source. By using connector cable and/or plastic connector, a few lamps can be installed in a row quickly and easily. The single Linear-LED Light comes in three different sizes (L=300mm/500mm/1000mm)

Benefits

  • Energy saving up to 50% compared with traditional fluorescent under the same flux

  • Life Span–over 50,000 hours

  • Available in cool white, neutral white, and warm white color temperatures; Available in other colors

  • Easy linking up to 36 watts per run

  • Easy installation

  • Low voltage, more safety.

Applications

LED show case lighting; LED shelf lighting; LED under counter lighting; LED display case lighting; LED retail product Lighting; LED Furniture Lighting; LED bookcase lighting; LED wardrobe lighting; LED wine cabinet lighting; LED under cabinet lighting; LED kitchen cabinet lighting; LED cove lighting; LED accent lighting; LED task lighting; LED product line lighting

Technical Operating Data

Product

length

Number

of leds

Voltage

Power

Radiance

Color Temp.

Luminous

Flux

Led

Current

[mm]

[pcs]

[V DC]

[W]

Angle [°]

[K]

[lm]*

[A]

C01L1

L=300

42

24

3

90

2700-6500k

280

0.18

C01L2

L=500

70

24

5

90

2700-6500k

460

0.18

CO1L3

L=1000

147

24

11

90

2700-6500k

920

0.18

Technical Features

Dimensions: 33mm (width) x 8mm (height) x L

Materials: Aluminum extrusion with black plastic end caps, Acrylic Lens Light Source: High brightness SMD3528 LED

Operating Temperature: -20°C to 40°C – Indoors Warranty: 2 years with proper installation and power supply

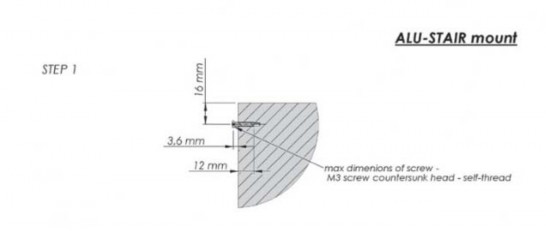

Installation: 2 Mounting Clips and 2 M2.6×10 screws make it easy to install

Packing Information:

Product

Color box*

size

Carton size

Units/carton

Net weight

Gross weight

C01L1

450X36X12

475(length)X120(width)X235(height)

40

7.2

7.6

C01L2

650X36X12

675(length)X120(width)X235(height)

40

10.5

11.0

C01L3

1150X36X12

1175(length)X120(width)X235(height)

40

18.0

19.0

Power supply(6w)

76X61X46

250(length)X170(width)X270(height)

40

2.5

3.0

Power supply(12w)

136x58x77

315(length)X290(width)X340(height)

40

8.4

8.9

Power supply(24w)

136x58x77

315(length)X290(width)X340(height)

40

10.0

10.5

Power supply with

DC receptacle(24w)

136x58x77

315(length)X290(width)X340(height)

40

11.0

11.5

Note: 1) Each Co1 color box includes 1lamp, 2 Mounting Clip, 2 M2.6×10 screws, 1 manual. (1 Plastic connector, 1 Connector cable is optional)

2) You can choose different power supply and accessories according to the power supply usage instruction,

Power supply usage instruction

Power Supply

C01L1

C01L2

C01L3

6W

2

1

XXX

12W

4

2

1

24W

8

4

2

36W

12

6

3

The following table shows how many lamps the power supply can drive respectively. You can select suitable power supply according to the power per run.

Note: 1) The power supply’s power should be over the total power when lamps are linked up.

Safety Information

1) Indoor use only

2)LED Module incorporates no protection against short circuits, overload or overheating. Therefore it is absolutely necessary to operate the modules with an electronically stabilised power supply offering protection against the above mentioned safety risks. Our power supply is specifically designed with protection features for safe operation. When using power supply other than us, the following basic safety features are required, in addition to any other application specific concerns and local safety codes:

Short circuit protection Overload protection Overheat protection

Packing Information:

Product

Color box*

size

Carton size

Units/carton

Net weight

Gross weight

C01L1

450X36X12

475(length)X130(width)X238(height)

40

7.2

7.6

C01L2

650X36X12

675(length)X130(width)X238(height)

40

10.5

11.0

C01L3

1150X36X12

1175(length)X130(width)X238(height)

40

18.0

19.0

C11L1

450X36X12

475(length)X130(width)X238(height)

40

4.6

5.2

C11L2

650X36X12

675(length)X130(width)X238(height)

40

6.8

7.6

C11L3

1150X36X12

1175(length)X130(width)X238(height)

40

11.6

12.6

C09

100X100X23

675(length)X220(width)X233(height)

100

10

11

Drawing

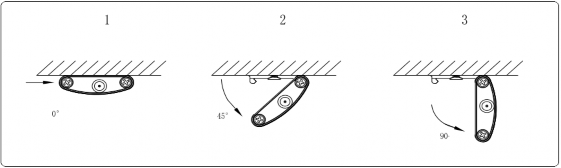

Installation information:


Complete set connection guide:


?????????? ? 1 ? ? 1 ?


???????


CIE????:

????: x=0.3571 y=0.3571/u=0.2174 v=0.3261 (duv=-1.86e-003)

????: Tc=4588K ???:?d=578.0nm ???:Purity=14.3% ????: ?p=450nm ???:??p=21.7nm ??:R=14.3% G=82.5% B=3.1% ????: ?av=560nm



????:Ra=70.6

R1 =62 R2 =76

R3 =84

R4 =61

R5 =62

R6 =63

R7 =79

R8 =46

R9 =-53 R10=41

R11=51

R12=30

R13=65

R14=91

R15=58

???:

???:F=208.48(lm) ???:?=65.91(lm/W) ????? P=598.8(mW)

???:

U=24.00V I=0.1318A P=3.163W PF=1.000

????:

????:380.0nm-800.0nm

????:REF=17595

????:5.0nm

????:%=-0.011%

?????:Ip=12394(G=2,D=63)

???????:29.0?


????:CO1L1 ????: CLEDLIGHT

????:??PMS-50 ??????: CLEDLIGHT

????:27.9? ????:65.0%

????: ??? ????:2009-05-25 16:10


Data Sheet

C04 Trigonal Linear-LED Light


LAMP




USE1

USE2





Plastic connector Led power supply Mounting clip Connector cable

CLEDLIGHTL’s C04 Linear-Led Lighting is widely used in showcases, display case or furniture. This trigonal Linear-LED Lighting is especially applied for all kinds of square cabinets. It is installed in corner, making angle 45 degree focus on specified accent area. By using connector cable and/or plastic connector, a few lamps can be installed in a row quickly. The single Linear-LED Lighting comes in three different sizes.

Benefits:

  • Energy saving up to 50% compared with traditional fluorescent under the same flux

  • Life Span–over 50,000 hours

  • Available in cool white neutral white and warm whit color temperatures; Available in other colors

  • No harmful ultraviolet (UV) rays

  • Easy linking up to 36 watts per run

  • Easy installation

  • Available in three different sizes (L=300mm/500mm/1000mm)

  • Using low voltage, more safety

Applications:

LED show case lighting; LED shelf lighting; LED under counter lighting; LED display case lighting; LED retail product Lighting; LED Furniture Lighting; LED bookcase lighting; LED wardrobe lighting; LED wine cabinet lighting; LED under cabinet lighting; LED kitchen cabinet lighting; LED cove lighting; LED accent lighting; LED task lighting

Technical Operating Data:

Product

length

Number

of leds

Voltage

Power

Radiance

Color Temp.

Luminous

Flux

Led

Current

[mm]

[pcs]

[V DC]

[W]

Angle [°]

[K]

[lm]*

[A]

C04L1

L=300

42

24

3

90

2700-6500k

280

0.18

C04L2

L=500

70

24

5

90

2700-6500k

460

0.18

CO4L3

L=1000

147

24

11

90

2700-6500k

920

0.18

Technical Features:

Dimensions: 33mm (width) x 20mm (height) x L

Materials: Aluminum extrusion with black plastic end caps, Acrylic Lens Light Source: High brightness SMD3528 LED

Operating Temperature: -20°C to 40°C – Indoors Warranty: 2 years with proper installation and power supply

Installation: 2 Mounting Clips and 2 M2.6×10 screws make it easy to install

Package Contents:

Product

Color box* size(mm)

Carton size(mm)

Units/carton

Net weight

Gross weight

C04L1

450X34X23

470(length)X215(width)X215(height)

40

8.4

8.9

C04L2

650X34X23

670(length)X215(width)X215(height)

40

12.3

12.8

C04L3

1150X34X23

1170(length)X215(width)X215(height)

40

20.0

21.0

Power supply(6w)

76X61X46

250(length)X170(width)X270(height)

40

2.5

3.0

Power supply(12w)

136x58x77

315(length)X290(width)X340(height)

40

8.4

8.9

Power supply(24w)

136x58x77

315(length)X290(width)X340(height)

40

10.0

10.5

Note: 1) Each Co4 color box includes 1lamp, 2 Mounting Clip, 2 M2.6×10 screws, 1 manual. (1 Plastic connector, 1 Connector cable is optional)

2) You can choose different power supply and accessories according to the power supply usage instruction,

Power supply usage instruction

Power Supply

C04L1

C04L2

C04L3

6W

2

1

XXX

12W

4

2

1

24W

8

4

2

36W

12

6

3

The following table shows how many lamps the power supply can drive respectively. You can select suitable power supply according to the power per run.

Note: 1) The power supply’s power should be over the total power when lamps are linked up.

Safety Information

  1. Indoor use only

    2)LED Module incorporates no protection against short circuits, overload or overheating. Therefore it is absolutely necessary to operate the modules with an electronically stabilised power supply offering protection against the above mentioned safety risks. Our power supply is specifically designed with protection features for safe operation. When using power supply other than us, the following basic safety features are required, in addition to any other application specific concerns and local safety codes:

    Short circuit protection Overload protection Overheat protection

    Drawing:


    Installation information:


    Complete set connection guide:




    Data Sheet


    Patented in: China, Europe, USA, Canada

    C10 Linear LED Light


    Model: C10


    C10A (C10 with ON/OFF switch) C10D (C10 with Built-in Touch dimmer)



    Size

    CLEDLIGHT’s C10 Cambered Linear LED Light is perfect for installation in showcases, display case or furniture. This Linear LED Light is especially applied to hidden/ covert installation. After processed by special optical system, this kind of flat linear light indeed becomes a continuous well-proportioned linear light source. With unique design, which has patented, the lamp can be easily to change the illuminated direction. The direction of LED light can be adjusted to 0°, 45°and 90°. With various accessories, the led light can have different extended functions like connection, motion and light sensor, dimmer and switch, etc.

    Advantages

    • Energy saving up to 50% compared with traditional fluorescent under the same flux

    • Life Span–over 50,000 hours

    • Available in cool white, neutral white, and warm white color temperatures;

    • Standard length: L1=300MM, L2=500MM and L3=1000MM, and customized length is also available.

      Standard finish color: white or silver, and customized color is also available.

    • Easy linking up to 48 watts per run and up to 3 meters when connected in series.

    • Easy installation with only 2 screws.

    • The direction of LED light can be adjusted for 0°,45°and 90 °.

    • Low voltage, more safety.

    • Warranty: 3 years.

    Applications

    LED show case lighting; LED shelf lighting; LED retail product Lighting; LED Furniture Lighting; LED bookcase lighting; LED wardrobe lighting; LED wine cabinet lighting; LED under cabinet lighting; LED kitchen cabinet lighting; LED cove lighting; LED accent lighting; LED task lighting; LED product line lighting


    Technical Operating Data

    Model No. length

    Number of leds

    Voltage Power Radiance Color Temp.

    CRI Luminous Flux

    [mm] [pcs] [Vdc] [W] Angle [°] [K] [lm]* C10L1 L=300 49 24 5 120 2700-6500k >80 400

    C10L2 L=500 77 24 8 120 2700-6500k >80 640

    C10L3 L=1000 154 24 16 120 2700-6500k >80 1280

    Dimensions: 33mm (width) x 9.5mm (height) x “L”

    Materials: Aluminum extrusion with plastic end caps, Acrylic Lens Light Source: High brightness SMD3014 LED

    Operating Temperature: -20°C to 40°C – Indoors Installation: 2 M3x10 screws make it easy to install

    Usage Instruction

    1. Standard package

      Standard package includes:

      1 piece of LED light, 1 piece of connecting cable, 1 piece of straight connector, 2pcs of screws

      C10/C10A/C10D LINEAR LED LAMP (1 piece) M3x10 screws




      C1001 STRAIGHT CONNECTOR (1 piece) AC01W CONNECTING CABLE


      LED light (1 piece) :

      C10: Basic model number, can connect with various accessories to get many extended functions. C10A: With built-in on-off switch. Switch function: master switch or individual switch to control itself C10D: With built-in touch dimmer. By touching this icon image, it can not only be dimmable with the

      lamp gradually brighter or darker but also have on/off switch function.

      Screws (2PCS): M3.0X10

      Straight connector (1 piece): can be used for direct connection of LED fixtures.

      Connecting cable (1 piece): 1 meter long, can be used for long distance connection of LED fixtures.

    2. Basic Usage: The LED light needs to connect with power supply directly.

      The LED light needs to plug into power supply and then it can work, please refer to the picture as below.


    3. Using straight connector and connecting cable to connect the LED lights.

      Based on the above usage, using straight connector and connecting cable can make LED lights interconnection , please refer to the picture as below.




      Note:The maximum length for connection is not over than 3 meters.

    4. Adjust the direction of LED light


      The direction of LED light can be adjusted to 0°, 45°and 90°.

      Rotate LED light according to the symbol PULL printed on the end cap to 0°,45° and 90°. Attention that the LED light can only be rotated to 90°maximum.

      Installation of LED lights


      1. Pull up the blue adhesive tape.

      2. The adhesive tape will take mounting plate rotate to 90°.

      3. Rip the tape and fix the mounting plate with M3*10 screws onto the place where the LED light needs to be installed.

Power supply usage instruction

The following table shows how many lamps the power supply can drive respectively. You can select suitable power supply according to the power per run.

Power Supply

C10L1

C10L2

C10L3

6W

1

XXX

XXX

12W

2

1

XXX

24W

4

2

1

36W

7

4

2

Remarks:

  1. The standard package of LED light doesn’t include power supply, but we can offer the power supply in separated package in different models for your choice.

  2. The power of power supply must be over the total power of connected LED lights in series.

  3. The voltage of constant-voltage power supply must be same as the voltage of LED lights. The output voltage of power supply can’t be allowed to be higher than the input voltage of LED light. If you choose to use other power supply, the power supply must have short circuit protection, overload protection, overheat protection besides the above requirements.

    Packing Information

    Product

    Color box* size

    Carton size

    Units/

    carton

    Net weight

    [Kg]

    Gross weight

    [Kg

    C10L1/C10AL1/C10DL1

    450X36X12

    470(length)X120(width)X230(height)

    40

    6.8

    7.5

    C10L2/C10AL2/C10DL2

    650X36X12

    670(length)X120(width)X230(height)

    40

    11.2

    12

    C10L3/C10AL3/C10DL3

    1150X36X12

    1170(length)X120(width)X230(height)

    40

    20.5

    21.6

    Power supply(6w)

    76X61X46

    250(length)X170(width)X270(height)

    40

    2.5

    3.0

    Power supply(12w)

    136x58x77

    315(length)X290(width)X340(height)

    40

    8.4

    8.9

    Power supply(24w)

    136x58x77

    315(length)X290(width)X340(height)

    40

    10.0

    10.5

    Power supply (36w)

    136x58x77

    315(length)X290(width)X340(height)

    40

    10.0

    10.5

    C10 Extended accessories

    Except the standard accessories, we also can offer optional extended accessories of C10 system for your choice to get more various functions. For example: connection, sensor, dimmer and switch, etc.

    C1003 IN-LINE SWITCH image


    C1004 IN-LINE TOUCH DIMMER image C1005 DC JUNCTION BOX image D01 WIRED DIMMER image P01 PIR SENSOR


    P02 IN-LINE MOVING SENSOR


    AC02W 4/8 WAY SPLITTER

    Installation instructions of extended accessories

    1. In-line switch



      Installation Instruction: Use In-line switch to connect with LED lights, then connect the power supply to the input side of the In-line switch.

      Operation: Press the switch on the body to turn ON/OFF the system at any time and can control all the connected LED lights in a series.

    2. In-line Touch Dimmer: with dimmer and switch function



      Installation Instructions:

      1. Use In-line Touch Dimmer to plug into the DC jack socket and secure the Dimmer to the mounting surface.

      2. Connect the power supply to the input side of the Dimmer.

Operation:

  1. Touch the power icon [image] on the body to turn ON/OFF the system at any time.

  2. The initial brightness is fixed at 100% when the system is first powered up.

  3. When the light is on, the brightness can be adjusted by touching and holding the power icon for more than 0.5 seconds.

  4. If the power to the dimmer is uninterrupted, the light level will be memorized when the system is turned off and then on again.

  5. The dimmer switch can control all the connected LED lights in a series.

Note:This touch switch can’t control LED lights with built-in dimmer. If control the whole series in one line, please connect the LED lights without dimmer function.


3. DC Junction box


If use the power supply without DC plug or need to cut off the DC plug of power supply to connect LED light, you can choose to use DC junction box to connect the LED light with hardwired power supply.

Installation instructions:

  1. Open the cover of DC junction box with screw driver.

  2. Insert the positive and negative output side of power supply into the positive and negative terminal block and lock the screws of terminal block.

  3. Close the cover by fastening the screws.

  4. Plug the DC junction box into the DC jack socket and secure the DC junction box to the mounting surface.

  5. Connect the power supply to the input side of the DC junction box.

Note:The LED light will not work if the positive & negative output side between power supply and terminal block is not consistent. It will not destroy LED light and you can make the correct positive &

negative connection between them.


4. Wired Dimmer: with dimmable and switch function


Installation Instructions:

  1. Use the screws provided to secure the Dimmer to the mounting surface.

  2. Connect the output to the LED light

  3. Connect the power supply to the input side of the Dimmer.

  4. This dimmer can be used in the place where the distance is less than 1 meter from the LED light

Operation:

  1. Touch the power icon [image] on the body to turn ON/OFF the system at any time.

  2. The initial brightness is fixed at 100% when the system is first powered up.

  3. When the light is on, the brightness can be adjusted by touching and holding the power icon for more than 0.5 seconds.

  4. If the power to the dimmer is uninterrupted, the light level will be remembered when the system is turned off and then on again.

  5. The dimmer switch can control all the connected LED lights in a series.

Note:This touch switch can’t control LED lights with built-in dimmer. If control the whole series in one line, please connect the LED lights without dimmer function.

  1. Moving Sensor P02: With automatic sensor function.



    Installation Instructions:

    1. Use the sensor to plug into the DC jack socket and secure the Sensor to the mounting surface.

    2. Connect the power supply to the input side of the Sensor.

Basic Data:

Detection Distance: 3m Detection Range: 120°

Installation Angle: 0°, 45°, 90°

Delay time: Standard is 30 seconds and can be adjusted to 2 minutes (can design in 1s ~20 minutes as customers’ request)

Functional information:

  1. Automatic detection: when people enter the detection area, infrared ray detector will output 12V or 24V and the light turns on.

  2. Delay function: when people leave the detection area or people stay still, the light will turn off after 30 seconds. Delay time can be adjustable from 30 seconds to 3 minutes, or others.

  3. Continuous detection: when people have activities during the period of delay time, the detector works and the light is always on.

  4. Installation Angle: The sensor can be easily rotated and made 0 degrees or 45 degrees or 90 degrees with the mounting surface of light..



  5. P02 PIR SENSOR is especially designed for CLEDLIGHT’s C10,C11 series LED light, use for other product maybe can’t work normally.

  1. PIR Sensor P01: With automatic sensor function.



    Installation Instructions:

    1. Use the screws provided to secure the Sensor to the mounting surface.

    2. Connect the output to the LED light

    3. Connect the power supply to the input side of the Sensor.

    4. This dimmer can be used in the place where the distance is less than 1 meter from the LED light.

      Technical Features:

      Dimensions: ?48mm X 12mm Installation: Use 2 M3.0x10 screws

      Input/ Output voltage : DC12V or DC24V

      Related load wattage: Max 24W in 12V or 36W in 24V Detection Distance: 2m

      Detection Range: 120°

      Delay time: Standard is 30 seconds (can design in 1s ~20 minutes as customers’ request) Ambient light: <10 lux daylight .

      Drawing: Installation information:



      Functional information:

      1. Automatic detection: when people enter the active zone, infrared ray detector will output 12V or 24V and the light turns on.

      2. Delay function: when people leave the active zone or people stay still, the light will turn off after 30 seconds.

      3. Continuous detection: when people have activities during the period of delay time, the detector works and the light is always on.

      4. Light sensitive control: The PIR Motion Sensor has two sensitive parts, one is infrared ray sensitive part, and the other is light sensitive parts. So it works when people enter in the active zone in the daylight luminance is less than 10 lux.

  2. AC02W 4/8 WAYSPLITTER.

You can use AC02W 4/8 WAYSPLITTER when one power supply needs to driver many pieces of LED LIGHTS.



LED Under Cabinet Lighting from MSD Lighting Co., Ltd.

For anyone interested in the more technical side of LED under cabinet lighting here is a collection of detailed model and/or pricing information currently on the market and available for order from the following:

MSD Lighting Co.,Ltd.
Website : www.meishida-led.com
Email: sales03@meishida-led.com
Tel No : +86-0755-2982 0442
Fax : +86-0755-2310 3629

LED Cabinet Light (MSD LIGHTING CO.LIMITED)

PIC

Item

Specification

Power

Length

Input Voltage

Lumens

Include accessories

Quotation

Connector

Mounting Hardware

M3.0

Screws

The Q’ty<500

The Q’ty>500

ET01L-1

ET01L300

Extremely Thin Series Standard model

3W

300mm

12VDC

250lm

1

2

2

US$6.40

US$6.20

ET01L500

5W

500mm

12VDC

450lm

1

2

2

US$7.88

US$7.60

ET01L800

8W

800mm

12VDC

700lm

1

2

2

US$10.83

US$10.40

ET01L1000

10W

1000mm

12VDC

800lm

1

2

2

US$12.32

US$11.80

ET01L300P

Extremely Thin Linear Series Integrate with touch switch on the plastic end

3W

300mm

12VDC

250lm

1

2

2

US$7.42

US$7.15

ET01L500P

5W

500mm

12VDC

450lm

1

2

2

US$8.90

US$8.57

ET01L800P

8W

800mm

12VDC

700lm

1

2

2

US$11.77

US$11.28

ET01L1000P

10W

1000mm

12VDC

800lm

1

2

2

US$13.33

US$12.77

ET02L-1

ET02L300

Corner lighting Linear Series Standard model

3W

300mm

12VDC

250lm

1

2

2

US$6.67

US$6.45

ET02L500

5W

500mm

12VDC

450lm

1

2

2

US$8.15

US$7.85

ET02L800

8W

800mm

12VDC

700lm

1

2

2

US$11.22

US$10.75

ET02L1000

10W

1000mm

12VDC

800lm

1

2

2

US$12.70

US$12.15

ET02L300P

Corner lighting Linear Series Integrate with touch switch on the plastic end

3W

300mm

12VDC

250lm

1

2

2

US$7.70

US$7.42

ET02L500P

5W

500mm

12VDC

450lm

1

2

2

US$9.17

US$8.82

ET02L800P

8W

800mm

12VDC

700lm

1

2

2

US$12.42

US$11.90

ET02L1000P

10W

1000mm

12VDC

800lm

1

2

2

US$13.72

US$13.12

ES20L

ES20L300

Small Size Linear Series Standard model

3W

300mm

12VDC

250lm

1

/

2

US$6.22

US$6.02

ES20L500

5W

500mm

12VDC

450lm

1

/

2

US$7.70

US$7.42

ES20L800

8W

800mm

12VDC

700lm

1

/

2

US$10.65

US$10.23

ES20L300P

Small Size Linear Series Integrate with touch switch on the plastic end

3W

300mm

12VDC

250lm

1

/

2

US$7.23

US$6.98

ES20L500P

5W

500mm

12VDC

450lm

1

/

2

US$8.72

US$8.38

ES20L800P

8W

800mm

12VDC

700lm

1

/

2

US$11.67

US$11.18

ES27

ES27L300

Led cabinet lighting seris Standard model

3W

300mm

12VDC

250lm

1

/

2

US$8.25

US$7.95

ES27L500

5W

500mm

12VDC

450lm

1

/

2

US$9.55

US$9.17

ES27L1000

10W

1000mm

12VDC

800lm

1

/

2

US$13.62

US$13.03

ES27L300IRS

Led cabinet lighting seris Integrate with IR sensor switch

3W

300mm

12VDC

250lm

1

/

2

US$8.80

US$8.47

ES27L500IRS

5W

500mm

12VDC

450lm

1

/

2

US$10.10

US$9.70

ES27L1000IRS

10W

1000mm

12VDC

800lm

1

/

2

US$14.17

US$13.57

ES27L500PIR

Led cabinet lighting seris Integrate with PIR sensor

5W

500mm

12VDC

450lm

1

/

2

US$11.03

US$10.58

ES27L1000PIR

10W

1000mm

12VDC

800lm

1

/

2

US$15.47

US$14.78

ES26

ES26L300

Led cabinet lighting seris Standard model

3W

300mm

12V DC

290lm

1

2

2

US$6.77

US$6.55

ES26L500

7W

500mm

12V DC

490lm

1

2

2

US$9.17

US$8.82

ES26L300IRS

Led cabinet lighting seris Integrate with IR sensor

3W

300mm

12V DC

290lm

1

2

2

US$9.17

US$8.82

ES26L500IRS

7W

500mm

12V DC

490lm

1

2

2

US$11.22

US$10.75

ES16

ES16L600

IP66 Standard

4.3W

600mm

12V DC

350lm

1

/

2

US$8.98

US$8.65

ES16L900

6.3W

900mm

12V DC

530lm

1

/

2

US$11.58

US$11.10

ES16L1200

8.5W

1200mm

12V DC

700lm

1

/

2

US$13.98

US$13.38

ES10

ES10L600

Standard

7W

600mm

12V DC

490lm

1

2

2

US$9.92

US$9.52

ES10L900

10W

900mm

12V DC

800lm

1

2

2

US$12.88

US$12.33

ES10L1200

13W

1200mm

12V DC

950lm

1

2

2

US$15.65

US$14.97

ER13

ER13L600

IP66 Standard

5W

600mm

12V DC

450lm

1

2

2

US$8.98

US$8.65

_DSC6393??

ED01

Standard model

2.8W

?70*9.5

12V DC

200lm

1

/

2

US$7.48

US$7.15

ED01T

Integrate with touch switch

2.8W

?70*9.5

12V DC

200lm

1

/

2

US$8.41

US$8.01

ED01TD

Touch switch and dimmable

2.8W

?70*9.5

12V DC

200lm

1

/

2

US$8.60

US$8.20

ED01T is with Touch switch on the lamp body.

ED01B

ED01B

Standard model

1.8W

?68*7

12V DC

150lm

1

/

2

US$4.71

US$4.51

ED01BT

Integrate with touch switch

1.8W

?68*7

12V DC

150lm

1

/

2

US$5.45

US$5.21

ED01BT is with Touch switch on the lamp body.

ED01C

ED01C

1W LED

3W

?68*8

12V DC

270lm

1

/

2

US$6.10

US$5.80

ED01D

ED01D

Led recessed down lamp

1.8W

?65*11

12V DC

150lm

1

/

/

US$3.60

US$3.46

D60H602

ED02R

Standard model

1W

?60*7

12V

85lm

1

/

2

US$2.95

US$2.85

S55H602

ED02S

Standard model

1W

?60*7

12V

85lm

1

/

2

US$2.95

US$2.85

EF05??

EF05

Adjustable LED Spotlight

2W

H=60

12V DC

110lm

1

/

2

US$8.00

US$7.61

EF06??

EF06

Flexible Metal conduit LED Spotlight

2W

H=285

12V DC

110lm

1

/

2

US$9.03

US$8.58

EF06A

Flexible Metal conduit LED Spotlight with switch

2W

H=285

12V DC

110lm

1

/

2

US$12.48

US$11.83

LED Lamp Accessores

þÿ

ECBOX8A

8 holes DC Receptacle.

1 hole is 5.5 DC connector; 8 holes are 3.5 DC connector

US$1.00

US$1.00

ET02

ET01-CC

ET01-SC

ET01-SC

Straight Connector

Only suit for ET01 series

US$0.50

US$0.40

ET01-CC

Right-angle Connector

US$0.50

US$0.40

þÿ

ET02-SC

Straight Connector

Only suit for ET02 series

US$0.50

US$0.40

ET02-CC

Right-angle Connector

US$0.50

US$0.40


ES20-SC

Straight Connector

Only suit for ES20 series

US$0.50

US$0.40

ES20-CC

Right-angle Connector

US$0.50

US$0.40

ES27 JIETOU

ES27-SC

Right-angle Connector

Only suit for ET27 series

US$0.50

US$0.40

þÿ

ED01DH

ED01D Base

US$0.40

US$0.30

FC2-1M

FC1-1M

Fexible Connector 1M Only suit for all Liear Led strip .one end DC3.5 male plug

US$0.40

US$0.30

FC1-1M

FC2-1M

Fexible Connector 1M Only suit for all Liear Led strip .doulbe end DC3.5 male plug

US$0.40

US$0.30

ACE-1

ACE-1.5M

1.5M AC LED Driver Plug ( EU Plug )

US$0.60

US$0.50

LED Driver and controller

EIR-01A

EIR-01A

Monostable IR Sensor switch,Detect range 5cm , 12V/24VDC Input voltage, Max 2.5A input current.

US$4.20

US$3.90

EIR-01B

Bistable IR Sensor switch, Detect range 5cm ,12V/24VDC Input voltage, Max 2.5A input current.

US$4.20

US$3.90

LEDDIMMER

DIM01

Dimmer is suitable for all of series 10-30V DC input,max 2A current

US$4.20

US$3.90

EPD-01

EPD-01

External touch switch . Two model : touch switch/ touch dimmer switch . 10-30V DC input,max 2A current

US$4.20

US$3.90

EPR-01

EPR-01

External PIR switch. 10-30V DC input,max 2A current

US$5.50

US$5.00

DSCF5242

ELT6-12VT

Super Slim Series H=10mm;6W 12VDC Led Driver with 3.5 DC connector hole;230VAC Input

US$3.80

US$3.60

ELT15-12VT

Super Slim Series H=14mm;15W 12VDC Led Driver with 3.5 DC connector hole;230VAC Input

US$5.50

US$5.20

DSCF5243

ELT20-12VT

Super Slim Series H=14mm;20W 12VDC Led Driver with 3.5 DC connector hole;230VAC Input

US$6.50

US$6.20

ELT30-12VT

Super Slim Series H=16mm;30W 12VDC Led Driver with 3.5 DC connector hole;230VAC Input

US$9.00

US$8.80

LED Aluminum Profile Application

  1. MS-P1908

    Aluminum picture


    Application : This profile is embedded type most often used to install LED lights on the street or in areas where there is a risk of moisture ingress. It can be a space near the pool, in the intervals of terrace boards in paving tile, granite and ceramic plates, etc.



    The main difference from other types of profiles, it is massive and durable light diffusing screen, which is mounted with a special sealant . This profile is best protects the LEDs from moisture and mechanical damage.

    • Screen (transparent ,milk)

      þÿ

    • End caps (pair: one with a hole for the cable, the second – the deaf)

      þÿ

  2. MS-P1506

    Aluminum picture

    B_K]OBRK`$_Y[I(}4)EFKYX

    þÿ

    This aluminum profile type applicator, although it can be used, including, as a mortise

    þÿ

    Its scope is limited only by your imagination.

    The profile can be activated to create decorative glowing bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches, front lighting glass or acrylic, etc.

    þÿ

    Our company this profile was first used, and is now frequently used for architectural lighting contour. His inner size is ideal for LED strip with protection degree IP-68.

    þÿ

    Screen (Transparent or milk)

    þÿ

    • End Caps (pair: one with a hole for the cable, the second – the deaf)

      þÿ

    • Fixing clips

      þÿ

  3. MS-P2206

    Aluminum picture

    þÿ

    þÿ

    This aluminum profile flush mount

    Application : one of the most popular models profiles

    It is designed to tie-in furniture, shelves, drywall, wooden partitions, etc., as shown in the example

    þÿ

    The profile can be activated to create decorative luminescent bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches.

    þÿ

    • Screen (Transparent or milk)

      þÿ

    • Silencers (pair: one with a hole for the cable, the second – the deaf)

      þÿ

  4. MS-P1612


    This aluminum profile can be as mortise and overhead

    LED profile MS-P1612 is virtually identical to the profile of the MS-P1506. The only difference – installation depth LEDs.

    When installed in this profile LED strip SMD 3528-120 using milk screen – you will achieve is a uniform line of light, without the effect of a point.

    þÿ

    þÿ

    • Screen (Transparent or milk)

      þÿ

      Plugs (pair: one with a hole for the cable, the second – the deaf)

      þÿ

      Plug (for transmitting power goes directly to the LEDs)

      þÿ

      fixling clips

      þÿ

  5. MS-P2212


Deep mortise profile, allowing you to create bands of light with uniform illumination without points.

Embedded in this profile walls, ceiling, floor, furniture, you can create a stunning and unique interior design.

þÿ

þÿ

The interior and exterior, the product profile of MS-P2212 can perform as a decorative function, and the function of basic lighting.

þÿ

Screen (transparent or milk)

þÿ

Plugs (pair: one with a hole for the cable, the second – the deaf)

þÿ

(6)MS-P1818


LP1818 – is a deep profile of a circular shape, which is most commonly used for the manufacture of linear LED fixtures on suspensions, stretching and stuff.

þÿ

Fixtures of this profile are incredibly comfortable to illuminate paintings in galleries and exhibitions.

Profile P1818 is often used for the manufacture of the main lighting fixtures main offices and administrative offices.

þÿ

A round profile often finds its application in furniture manufacturing, advertising and architecture.

Exclusive products from Profile

þÿ

The interior and exterior, the product profile of LP1818 can perform as a decorative function, and the function of basic lighting.

Screen (transparent or milk)

þÿ

Plugs (pair: one with a hole for the cable, the second – the deaf)

þÿ

Plug jig (for transmitting power goes directly to the LEDs)

þÿ

Fixing clips

þÿ

(8)MS-P1919


Designed for mounting the LED light source at an angle of 45 degrees with respect to the mounting surface, which allows to effectively use light. Profile directs the light beam to the object illumination and prevents it in people’s eyes.

Steam is often used to illuminate the shopping marts, especially showcases jewelry stores, furniture for illumination, and sometimes, in the interior illumination.

þÿ

MS-P1919 used for the production of lamps for the lighting of the gallery of paintings and other exhibits.

Screen (transparent or milk)

þÿ

Plugs (pair: one with a hole for the cable, the second – the deaf)

þÿ

fastening clips

þÿ

(9)MS-P6628

þÿ

þÿ

This is a specialized profile designed to illuminate the steps in cinemas, nightclubs and many other sites

þÿ

Wiring Diagram

þÿ

þÿ

þÿ

Light diffusing screen and plugs

þÿ

(9) MS-P7026


This profile can be considered a boon for the designer. It allows you to create a lighting directly inside the wall or other surface. The effect is simply stunning

Supplied 1, 2 or 3 meter complete with diffuser.

Available production fixtures, the parameters of the customer

þÿ

þÿ

Options:

þÿ

Plugs (pair: one with a hole for the cable, the second – the deaf)

þÿ

(10)MS-P4538

þÿ

This profile type, mainly used for mounting in corners of rooms and create a beautiful contour lighting or main LED lighting.

þÿ

þÿ

þÿ

þÿ

light diffusing screen

  1. MS-P3535


    This profile is used to create a decorative or general lighting. Supplied 2 or 3 meter complete with diffuser.

    Available production fixtures, the parameters of the customer. It may be light, like mortise and overhead, as well as suspended

    þÿ

    Light diffusing screen and plugs

    þÿ

  2. MS-P3535B

    Aluminum Pictures


    This mortise profile used to create or deokrativnogo main lighting. Supplied louver 2 or 3 meter complete with diffuser.

    Available production fixtures, the parameters of the customer

    þÿ

    þÿ

    þÿ

    Light diffusing screen and plugs

    þÿ

    þÿ

  3. MS-P2626

    Aluminum Pictures :

    þÿ

    þÿ

    Unique profile P2626 is ideal for mounting underground . There is no better solution to install lighting in the parking . It can be installed in a space near the pool , in the intervals of terrace boards in paving tiles , granite and ceramic plates , etc.

    The main difference between the profile of P1908, from other types of profiles , it is massive and durable light diffusing screen, which is mounted with a special sealant ( sealant name , we strongly recommend to learn from employees MSD Light). This profile is best protects the LEDs from moisture and mechanical damage.

    þÿ

    þÿ

    þÿ

    þÿ

    þÿ

    –PC Cover : Milk

    þÿ

    –End Caps :

  4. MS-P3006

    Aluminum pictures


    Profile P3006 Surface-profile type. Used for all sorts of highlights, but mainly for the conditional separation zones or interior spaces.

    Can be mounted on shelves, furniture, walls, floors, etc.

    þÿ

    PC Cover : transparent ,diffuse ,milk optional

    þÿ

    End Caps (pair: one with a hole for the cable, the second – the deaf)

    þÿ

  5. MS-P3010


    Aluminum Pictures

    Profile angled mounting P3010, is mainly used to illuminate the facade windows. Installation of lighting using proflya PML-180 is very simple and requires no special

    skills

    þÿ

    PC Cover : transparent ,diffuse ,milk optional

    þÿ

    End Caps (pair: one with a hole for the cable, the second – the deaf)

    þÿ

  6. MS-P6009

    Aluminum Pictures


    þÿ

    Three-tier profile Recessed used to create intense lighting or general lighting. Scope furniture manufacturing, interior and exterior lighting and lighting production, advertising and much more.

    þÿ

    Options:

    • Screen (Transparent or milk)

    þÿ

    –End Caps (pair: one with a hole for the cable, the second – the deaf)

    þÿ

  7. MS-P5609

Aluminum Pictures


Three-tier profile Recessed used to create intense lighting or general lighting. Scope – furniture manufacturing, interior and exterior lighting and lighting production, advertising and much more.

þÿ


Options:

–PC Cover : Transparent ,Diffuse or Milk Optional


–End Caps (pair: one with a hole for the cable, the second – the deaf)
